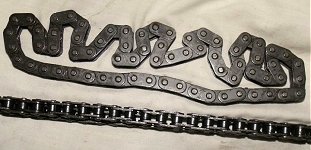

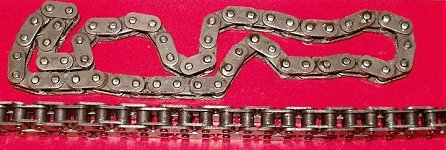

TKR/Triple-S 415 eq 1/2"×3/16" heavy-duty main drive
chain, complete with connecting springlink—£10.
(Heavy-duty chain has thicker plates and heavier gauge
pins.) Supplied in standard boxed length of 120-pins
(60-links).
This is the size of main drive chain for all
mopeds, autocycles, and many light motor cycles. Also
correct size to fit trade carrier bike heavy-guage pedal
chain.
Traditional Adie ‘Quality’ black cycle chain
½×⅛×112 pins, c/w connecting
springlink—£6.
Tested and approved to British Standard
report no.139676. Link plates are straight pierced and
pinned through the rollers in traditional manner, with roller
cores between the plates for better construction (not
plunge-pierced through the link-plates like ‘economy’
chains, which eliminates the roller core).
Ventura/KMC 7J–2 ‘Economy’ steel-finish cycle pedal chain ½"×⅛"×112 pins, c/w spring clip connecting link—£5.
Cyclemaster primary drive chain (primary sprocket to clutch
chainwheel)—£21.
3/8" pitch × 5/32" special. 44 pins, riveted,
endless.
Cyclemaster main drive chain (engine sprocket to
hub)—£29.
3/8" pitch × 5/32" special. 68 pins, riveted,
endless.
Excelsior primary drive chain—£12 each.
3/8" pitch × 7/32" special. 54 pins riveted,
endless.
For: Excelsior autocycle engines S1 Sprite & G2 Goblin,
Brockhouse Corgi, Indian Papoose.
Sachs 2-speed early chain drive engine models:
New special pitch internal chains 3/8" × 5/32", riveted,
endless.
299 980 primary chain, 38 pins—£18.
299 970 chain for axle shaft, 28 pins—£13.
1/2" / 415 chains. Pack of 12 spring clips—£1.00.
½"×⅛" cycle chain spring link—80p.
415 (1/2"×3/16") heavy-duty main drive chain spring
link—£1.00.
Fits TKR and Triple-S chain systems.
Note: This heavy-duty chain spring
link may not fit other makes of standard gauge 415
chain.
420 (1/2"×1/4") chain spring link—£1.00.
428 (1/2"×5/16") chain spring link—£1.10.

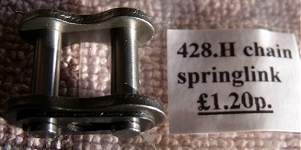

428H (heavy duty) chain spring link—£1.20.
520 (std) chain spring link—£1.30.
520H (heavy duty) chain spring link—£1.80.
520XHO (extra heavy duty with O-rings) chain spring link—£2.20.
520XHX (extra heavy duty with X-seal) chain spring link—£2.50.
525XHO (extra heavy duty with O-rings) chain spring link—£2.20.
525XHX (extra heavy duty with X-seal) chain spring link—£2.50.
530 (std) chain spring link—£1.50.
530H (heavy duty) chain spring link—£1.80.
530XHO (extra heavy duty with O-rings) chain spring link—£2.20.
530XHX (extra heavy duty with X-seal) chain spring link—£2.50.
High Melting Point Chain Grease, 1kg tin—£24.
Probably the most effective and cleanest
stuff you can treat your chain with! Put your chain in the
tin, then heat to melt the chain into the grease. Draw out,
drain and cool. (Tie a bit of wire around your chain helps
to fish it out when it’s hot). The HMP grease
thoroughly penetrates all the chain joints and runs clean (unlike
oil). Use and re-use—lasts for years!
Rear wheel adjusters c/w washer, spring washer, nut &
locknut—£3.00 pair.
Washer O/D 28mm, Washer I/D 12.5mm, Adjuster bolt length 50mm
× M6 thread.

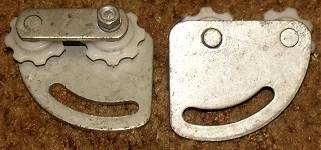

Honda Camino, New Pedal Chain Tensioner
assemblies—£10 each.
Adjuster mounting plate c/w pivots, 2 × idler
tension wheels, and bridge plate (steel).
Link splitter, light cycle—£4.
Link splitter, standard—£14.
Link splitter, heavy duty—£16.

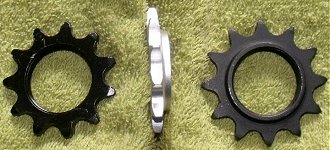

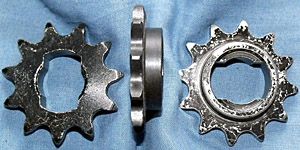

Anker–Laura M48. Bore 28.5mm Ø ×
26.2mm flats. Flat sprocket—total width 4.3mm.
Chain 415 / ½" × 3/16"
11T—OEM No.481091 / WMH 005-161-011—£11.
12T—OEM No.481092 / WMH 005-161-012—£12.
13T—OEM No.481093 / WMH 005-161-013—£13.
Batavus Anker–Laura M-48 front sprocket lock
rings—£3 each.
New stock
Berini/Anker, 29mm × 1mm LH thread, Total width 8mm.
11T—V.128—£10.
12T—EEMM48—£10.
Berini M21/M22/M25, Plain bore 17mm, Keyslot 3W × 1.3H
Total width 15mm.
11T—V.145—No stock.
12T—V.132—New, £12.
13T—V.170—No stock.
14T—V.51—New, £14.
Berini M35 (3-speed), Bore 20mm × flats 13mm.
12T—V.171—No stock.
13T—V.52—£9 New / £2 Used.
14T—V.99—£10.
Demm 49cc 2-stroke, 2-speed/3-speed. Taper
15mm—18mm, Keyslot 4W × 1.5H, Total width 15mm.
11T—V.100—No stock.
12T—V.101—No stock.
13T—V.102—No stock.
14T—V.103—No stock.
DKW Hummel / Berini M31. Bore 17mm × flats
11mm. Total width 4.5mm.
11T—V.104—No stock.
12T—V.53—£8.
13T—V.54—No stock.
14T—V.55—£10.
DKW / Victoria type 116 (with Zweirad Union motor).
31T spline bore 12–14mm. Flat sprocket 4.3mm.
Pilot hole 5mm.
11T—V.135—£8.
12T—V.92—£8.
13T—V.93—£9.
14T—V.94—£12.
15T—V.120—£14.
DKW / Victoria type 136 (with Zweirad Union motor /
5-speed) from 1963. 31T spline bore 15.2mm ×
17mm. Total width 5.8mm (chain ½" ×
¼")
13T—V.201—No stock.
14T—V.202—£10.
15T—V.203—No stock.

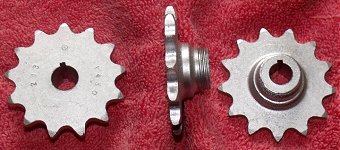

FBM Morini-Minarelli (2-speed/3-speed). Taper
12.5mm—14.8mm, Keyslot 3W × 1.3H, Total width 13mm,
Thread 24mm × 1.5mm.
11T—V.215—£8.
12T—V.117—£8.
13T—V.90—£12
14T—V.89—£14.
15T—V.118—£16.
Heinkel. (We don’t know what Heinkel model this
sprocket is for, so appreciate if someone could let us know
please.) Taper bore 15–14mm. Keyslot 3mm wide.
Total width 20mm. Extractor thread M30×1mm
pitch. Sprocket 6mm wide, so for 420 /
½"×¼" chain.
11T—WMH 068-???-011—£11.
HMW 50E—50T (1-speed & 2-speed). 30T spline
bore 10mm × 12mm. Plain hole 5mm. Total width
6mm.
11T—V.56—£10
12T—V.57—£12.
HMW 50N-2 (2-speed). Taper 10.5mm—12mm, Keyslot 3W
× 1.5H, Total width 16mm.
12T—V.58.—£8.
13T—V.109.—£9.
14T—V.59.—£10.
HMW 50N-3 (3-speed). 31T spline bore 15mm ×
16mm. Plain hole 5mm. Total width 6mm.
12T—V.122—£8.
13T—V.123—£9.
14T—V.124—£10.

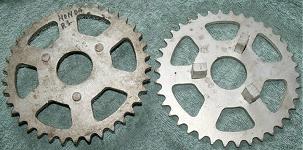

Honda early OHC model PC50 & PS50 rear
sprocket—£40.
38T flat sprocket with 3 × riveted blocks to engage cush
drive.
Honda PC50-K1 Standard 15T Front Sprocket—£12
each.
Honda PC50-K1 Front Sprocket ‘Specials’.
Special ‘gear-down’ reduced ratios for better hill
climbing performance. Standard ratio is 15T.
Gear-down 1T = 6.7%. 14T
‘Special’—£16. Back in
stock
Gear-down 2T = 13.4%. 13T
‘Special’—£16. Back in
stock
Note: While these will improve
hillclimbing and acceleration performance, please appreciate they
will also proportionately reduce the standard top speed.
All these sprockets are made from superhard S45C high carbon
sintered iron. Remanufactured by ourselves. Better
than the original, and not available anywhere
else.
Honda PC50 Std 15T Front Sprocket. Superhard
metal—better than original! Remanufactured, not
available anywhere else. New—SOLD
OUT—MACHINING RE-STOCK
Honda PC50 Special ‘gear-down’ 14T Front
Sprocket. Superhard metal—better than original!
Remanufactured, not available anywhere else.
New—SOLD OUT—MACHINING RE-STOCK
Note: This front sprocket is
specifically to fit the early OverHead Camshaft PC50 model with
the aluminium cylinder head. It’s a completely
different sprocket from the one fitted to the later K1 overhead
valve/pushrod model.
Honda PC50 K1 (ohv) 28T Rear Sprocket—£30
Note: The original Honda sprocket was
29T. This 28T sprocket increases the final drive ratio by
3.5%, so will gear-up top speed by 1.2mph.
Note: Will NOT fit the earlier overhead camshaft
model.
ILO/Jlo FM48 (Batavus Bilonet) F60/F60H (Batavus
1950s’), ILO/Jlo 125cc. Plain bore 19mm, Total width
14mm. Driving channel milled across 1-side boss × 8mm
wide.
11T—Jlo part #158.35.009-0/1. 030-113-011.
471-11.—£10.
12T—Jlo part #113.35.017-0/1. 030-113-012.
471-12.—£10.
13T—Jlo part #113.35.009-0/1. 030-113-013.
471-13.—£10.
ILO/Jlo FP50 1-speed front sprocket, bore 15.08mm Ø
× 10.28mm flats, total width 4.5mm, chain ½" ×
3/16" / 415.
10T—V.60—No stock.
11T—V.61—No stock.
12T—V.62—No stock.
13T—V.63—No stock.
14T—V.64—£10.
15T—V.110—No stock.
ILO/Jlo G49 front sprocket, 16-spline bore 15mm × 17mm,
boss 30.5mm Ø, total width 15mm, chain ½" ×
3/16" / 415.
11T—V.181—No stock.
12T—V.182—No stock.
13T—V.183—No stock.
14T—V.185—£10.
15T—V.211—No stock.
ILO/Jlo G50/V50/Mini 2-speed. Bore 10.28 Ø
× 15.08mm flats. One-sided boss sprocket. Total
width 8mm. For 415 / ½" × 3/16"
chain.
11T—V.65—£8.
12T—V.66/V.133—£8.
13T—V.67/V.125—£9.
14T—V.68/V.126—WMH 030-150-01—No stock.
15T—V.111—WMH 030-150-015—No stock.
ILO/Jlo Mot o Mat front sprocket, taper 12.5 - 15mm, keyslot
3W, total width 12mm.
14T—V.149—£10.
Kawasaki KX125, K1-K5, L1-L4, M1-M3. 6-spline 18 x 22 x
6W. Total width 6mm. Chain 520.
12T—JTF1445-12 / PBR 423-12.—£5.
Kreidler 3-speed hand-change, Bore 14.8mm × flats 12mm,
Total width 7.2mm, Chain 1/2" × 3/16".
10T—V.161—£8.
11T—V.195—No stock.
12T—V.156—No stock.
13T—V.146—£9.
14T—V.147—£10.
15T—V.148—£11.
16T—V.160—No stock.
Kreidler Florett Super Sport (footchange), bore 14.8mm
Ø × 12mm flats, total width 7mm, retaining hole 5mm,
chain ½" × ¼" / 420.
12T—V.191—No stock.
13T—V.150—No stock.
14T—V.151—£10.
15T—V.152—£10.
16T—V.153—No stock.
17T—V.192—No stock.
Kreidler K50 (Motorfahrrad), K51 (Motorrad), J51, 51/1, 51R,
R50, Amazone 57. Bore 27mm, Total width 16mm.
11T—11.18.01 (431-11)—No stock.
12T—11.18.02 (431-12)—No stock.
13T—11.00.07 (431-13)—£10.
Mobylette Cady/Mini-Cady, Bore 20mm, Total width 21mm.
11T—19044 044-114-011—£8.
Mobylette: wide selection of new front
sprockets—£8 each.
11T × 26mm
12T × 26mm
13T × 26mm
12T × 28mm (with fitted bronze bush)
12T × 28mm
11T × 29mm
12T × 29mm
12T × 31mm
15T × spline bore (relay-box)
Mobylette AV76, RM4, etc: new rear sprockets.
44T × 110 bore—£20.
44T × 94 bore—£20.
48T × 110 bore (AV89, RM5)—£25.
52T × 80 bore—£25.
54T × 110 bore—£25.
Mobylette/Raleigh Special high-tensile, square-headed rear
sprocket bolt sets—£1 each.
Special square headed × M6 threaded bolt, shakeproof washer
+ high tensile nut. For Prior and Atom hub types.
These come in 3 different lengths to suit different models:
14mm
19mm
27mm
(Measure length of bolt shank from underneath head to end of
thread.)
NSU Quickly/Cavalino 2-speed/3-speed. Taper
11mm—12mm, Keyslot 3W × 1.5H, Thread M30 × 1mm,
Total width 11.5mm.
11T—V.140—No stock.
12T—V.76—No stock.
13T—V.91—No stock.
14T—V.130—£10.
Parilla 48cc 2-stroke. Taper 10.3mm—12.1mm.
Keyslot 2.53W x 1H. Total width 18mm. Thread M24
× 1.5mm.
13T—V.141—£10.
Peugeot 102. 28mm Bore.
11T—£8.
12T—No Stock.
13T—No Stock.
Puch front sprockets 12T, 13T, & 14T—£4
each.
Puch front sprockets 15T, 16T, & 17T—£5 each.
Puch rear sprocket, Maxi 38T—£10.
Raleigh RM1 / RM1c / RM2 (Sturmey-Archer models), New/original
manufacturers front drive sprockets, fully hard.
11T—£5.
12T—£5.
Raleigh Wisp 38T rear sprocket, 94mm bore with 6-bolt
3×2 fixing to fit Atom hub—new—£10.
Bolts straight on, and 8mm dish-form keeps the chain correctly in
line.
The original Wisp was fitted with standard
44T sprocket (being the smallest size available for Atom hub with
94mm bore), but with the small wheels on the Wisp, the gearing
was too low, and Raleigh received a lot of customer complaints
about over-revving, vibration, slow performance, engine failure,
etc, so Raleigh produced a special 36T rear sprocket to gear-up
the drive. The original Raleigh 36T sprocket is no longer
available, but this 38T sprocket offers a considerable
improvement if you want to gear up your Wisp by 14% from a old
44T.
Rex sprockets are listed in Rex & Hercules Spares.

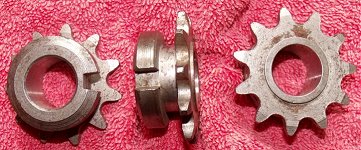

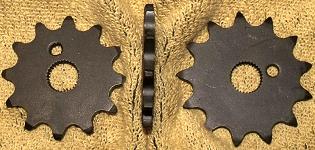

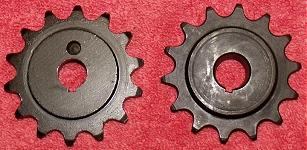

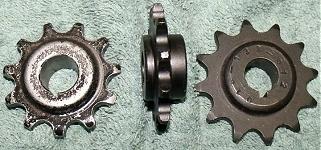

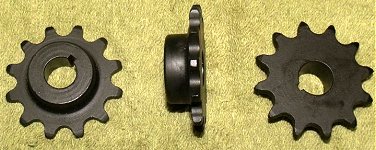

Sachs 50. 2-gear drive sprocket. Taper
11.7mm—13mm. Keyslot 3.12W×2H. Total
Width 15mm.
Sachs 50KL (2-speed up to engine 1854431) . Taper
13.8–15.2mm. Keyslot 3mm. Total width 15mm.
11T—WMH.016-133-011—£8.
12T—WMH.016-133-012—£8.
Sachs refs. 236.790 – 11T & 12T.

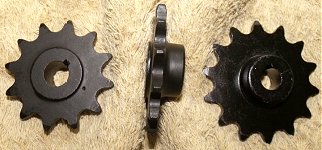

Sachs 50. 2-gear drive sprocket. Taper
11.7mm—13mm. Keyslot 3.12W×2H. Total
Width 15mm.
11T—V.81—£8.
12T—V.83—£8.
13T—V.86—£9.
14T—V.105—£10.
Sachs 50. 2-gear drive sprocket. Taper
13.8mm—15.3mm Keyslot 3.12W×2H. Total
Width 15mm.
10T—Special—£10.
11T—V.82—£8.
12T—V.84—£8.
13T—V.87—£9.
14T—V.106—£10.
Sachs 50. 2-gear drive sprocket. Taper
11.7mm—13.2mm. Keyslot 3.12W×2H. Total
Width 15mm.
11T—V.107—£8.
12T—V.85—£8.
13T—V.88—£9.
14T—V.108—£10.

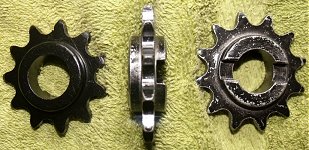

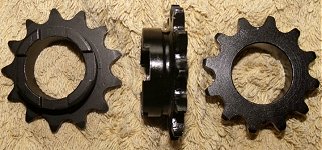

Sachs-50 3-speed. Bore 15.5mm Ø × 12mm
flats. Dished sprocket—total width 13mm. Chain
415 / ½" × 3/16".
11T—WMH 016-138-011—£11.
12T—WMH 016-138-012—£12.
13T—WMH 016-138-013—£13.
14T—WMH 016-138-014—No Stock.

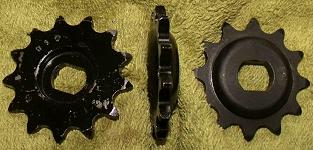

Sachs-50 3-speed/4-speed. Bore 15.5mm Ø ×
12mm flats. Dished sprocket—total width 9mm. Chain
415 / ½" × 3/16".
11T—V.175.—WMH 016-139-011—No Stock.
12T—V.176.—WMH 016-139-012—£12.
13T—V.177.—WMH 016-139-013—£13.
14T—V.178.—WMH 016-139-014—No Stock.
Sachs-50 3-speed. Bore 15.5mm Ø × 12mm
flats. Dished sprocket—total width 15mm. Chain
415 / ½" × 3/16".
11T— —WMH
016-144-011—No Stock.
12T—V.128.—WMH 016-144-012—£12.
13T—V.157.—WMH 016-144-013—£13.
Sachs-50 3ML. Bore 15.5mm Ø × 12mm
flats. Flat sprocket—total width 6mm. Chain 415
/ ½" × 3/16".
11T— —WMH
016-146-011—No Stock.
12T—V.179.—WMH 016-146-012—£12.
13T—V.180.—WMH 016-146-013—£13.
14T—V.224.—No Stock.
Sprocket 48T x 137mm bore (1/2" × 3/16" eq. 415). New—£10.
Sprocket 56T × 94mm bore (1/2" × 3/16" eq. 415). New—£10.

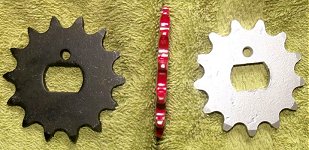

Tomos, bore 20mm Ø × 14.6mm flats, total width
4.5mm, chain ½" × 3/16" / 415.
10T—V.219—No stock.
11T—V.227—£8.
12T—V.220—£8.
13T—V.221—No stock.
14T—V.222—£10.
15T—V.223—£10.
Tomos 26T front sprocket, 15-spline bore—£6 each.
Tomos 22T rear sprocket, 19mm bore—£6 each.

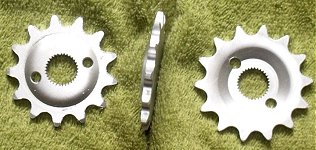

Victoria (Vicky, Luxus, Avanti, ViVi), 32T spline bore 15mm
× 17mm. 2 plain holes 5mm. Total width 7mm.
11T—V.143—£8.
12T—V.131—£9.
13T—V.113—£10.
14T—V.114—£11.
15T—V.115—£12.

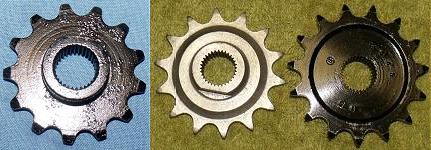

Zündapp Combinette 2-speed. 31T spline bore
12mm×14mm, Total width 14mm.
11T—V.144—£8 New / £2 Used.
12T—V.119—£8.
13T—V.96—£9.
14T—V.97—£10.
15T—V.98—No stock.
16T—V.204—No stock.
Zündapp Falconette KS50/KS100 front sprocket, 32T spline
bore 15–17mm. Bossed sprocket. total width
13mm. For 415 / ½" × 3/16"
chain.
13T—OEM No.276-05.218—WMH
062-131-013—£9.
14T—V.162/V.197—£10.
15T—V.163/V.193—£10.
16T—V.164/V.194—only Pre-used—£2.
17T—V.196—No stock.
ISO Freewheels ½" pitch × ⅛", normal
1⅜"×24tpi cycle
thread:
16T—£6,
18T—£9,
20T—£12,
22T—£14,
23T—£15,
24T—£16.
Miniature freewheels ½" × ⅛", special 1"
× 20tpi UNEF thread
M&M Eagle IMT (USA) 14T—£10
T D Cross (GB) 14T—£12
Tiger United Wheels PVT Ltd (USA)—No Stock.

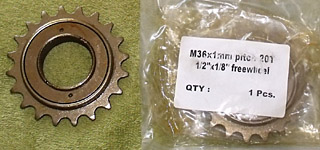

20T freewheel, special ‘oversize’ thread:
36mm×1mm pitch. For Moby AV89, Sport Speciale,
Raleigh RM5, Norman Lido Mk3, Phillips Gadabout
Mk4—£35
Note: these models may require this
special oversize freewheel.
Freewheel spacers.
1⅜" I/D ×
1.5mm—£1 each.
1⅜" I/D ×
3mm—£1 each.
Fit behind freewheel on hub for aligning chain run from pedal
sprocket. Also makes it a little easier to remove the
freewheel in future (oil/grease the spacer before fitting).
BSA Ariel-3 Synchronous toothed drive
belt—£7.50.
⅜" pitch × 1" wide × 22½" long ×
60T.
Wide range of most moped drive belts—from £6.
Anker-Laura; Batavus Go-Go, Bronco, HS50—£6.
Anker-Laura M48-0M, Ankermatic, Batavus
Batavette—£10.
Auto-VAP—£6.
Cyclaid Drive Belt for 21" frame—£12.
Cyclaid Drive Belt for 23" frame—£12.
Honda Camino—£18. (Heavy industrial grade belt,
better quality than the original)
Lavalette, Paloma, Hercules Corvette—£9.
Mobylette 1-speed/fixed engine type original specification belts,
Raleigh RM6 Runabout, Wisp, etc. Top length
800mm—£12.
Mobylette AV89, SP50; Raleigh RM5, RM11,
RM12—£15.
Mobylette early models AV3–AV33, ‘short belt’,
top length 760mm. £12.
Mobylette M40/50 & Vario pattern belts—£6.
Mobylette relay box AV92, SP93, SP94—£8.
Mobylette Cady, M1P, C1 M1PR, X1—£8.
Peugeot 103, 104, Vogue, etc. Narrow (9mm top
width)—£8.
Peugeot 103, 104, Vogue, etc. Wide (12mm top
width)—£8.
Raleigh RM1, RM2 Sturmey-Archer—£6.
Triumph Tina and T10 scooter drive belts—£18.
Ariel 3/SIM50 Clutch Pulley Bearing, Part No 19-9974 (Torrington RGB.081214)—£20. Note: Fit with lettering to outside
BSA Winged Wheel Hub seal, 78-60-9—£9 each.
Ducati Cucciolo Camshaft needle roller bearing kit (19 needle rollers 17.8mm × 2mm)—£19.
Ducati Cucciolo engine roller bearing kit (47 roller bearings
5mm × 5mm)—£26.
Covers full engine set: 12 + 12 each end of
the clutch shaft & 14 + 9 each end of the
selector/camshaft.
Note 1: BSA Winged Wheel 35cc engine uses this same
size of 5mm × 5mm roller as engine main journal bearing, 40
per set—£27.
Note 2: Peugeot Bima engines use this same 5mm × 5mm
roller as engine main journal bearing, 13 per
set—£7.20.
5mm × 5mm roller bearings also available singly @ 55p
each.

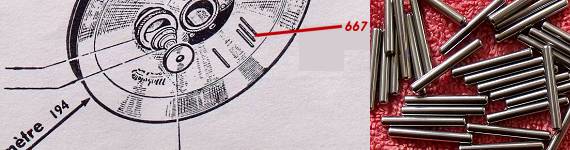

Old Mobylette belt flywheel hub No.667 × 20 needle
roller bearing set. New—£35.
Used on first-series models (1954) with cast
zinc flywheel. Needle roller bearings No.667 3mm diameter
× 23.8mm long (dome-ends).
Mobylette/Raleigh Felt seal (outer) MTB105 for Automatic
single-speed clutch—£1 each.
Die-cut from 35mm O/D
× 29mm O/D × 6mm thick medium denisty white engineering
felt. Essential to prevent grease from the clutch bearing
getting on to the clutch shoes. Can be fitted without any need to
remove the retaining plate. Fits all Moby single-speed
clutches.

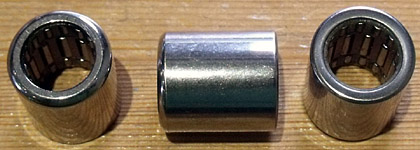

Mobylette/Raleigh needle roller bearings for belt
flywheel—£8 each.
16mm I/D
to run on pedal shaft × 22mm O/D to push into belt flywheel ×
12mm long. Best quality heavy-duty metal needle cage
(won’t skew like the plastic cages).
Mobylette/Raleigh Special needle roller bearings for
belt flywheel—£10 each.
16mm I/D
to run on pedal shaft × 22mm O/D to push into belt flywheel ×
14mm long with seal in one end. Best quality heavy-duty metal
needle cage (won’t skew like the plastic cages).
Assemble with seal to outside of belt flywheel boss to exclude
water/dirt ingress.
Mobylette main bearings £35 pair, and crank seals—£3 each.
Mobylette/Raleigh 20-2.5 O-ring seal for variator clutch
drum—£1 each.
If you’re having problems with grease
getting through onto the clutch shoes, then this is the seal you
need to replace on the back boss of the variator clutch
drum.
Mobylette/Raleigh Pedal Shaft Bush
Kits—£15 pair.
Boss 24 O/D—Head 30 O/D—Bore 16—O/A length
25.
Mobylette/Raleigh Pedal Shaft Bush Kits, Early type with
smaller head—£15 pair.
Boss 24 O/D—Head 26 O/D—Bore 16—O/A length
25.
Mobylette steering head bearing set components
Stem cap ‘M’ blanking plug—£2.
Lock socket ‘M’ blanking plug—£2.
Top locknut for stem—£3.
Top screw race for stem (plain)—£4.
Top screw race for stem (serrated, use with serrated locking
ring)—£4.
Top frame cup (shallow)—£3.
Bottom frame cup (deep)—£3.
Bottom race for stem—£3.
Bottom nut for stem (not illustrated)—£3.
Mobylette/Raleigh 6200 wheel bearing (slide-out axle type), 30-10-9 Double-sealed—£5 each.
Puch MS/VS/VZ/Monza/Grand Prix/Maxi 2-speed manual, crank main
seals, 35-17-7—£4 each.
Top quality double-lipped
seal.
Raleigh RM1/RM2 Sturmey–Archer Engine, main bearing and
crank seal kit—£34.
Main Journal Bearing LS7 5/8×19/16×7/16. Needle roller bearing NK.15-16.
Crank seal 15-24-7.
Raleigh steering head parts (left to right):
Bearing Race, Steering Head, MAN103 (42mm O/D)—£3;
Bearing Race, Fork Crown, MAP102 (42mm O/D)—£3;
Adjustable Race, Steering Head, MAL102
(chrome)—£5;
Locknut, Steering Head, MAK101 (chrome)—£4;
Fork topnut. Imperial 1" × 26tpi cycle thread. New chrome plated
finish—£1 each.
Shouldered at top for waterseal to suit standard 7/8" stem.
Sachs E14 main bearings, 35-15-8—£14 each.
Sachs engine cranckcase seals, 15.30.7—£7 pair.
Sinclair-Goddard Power Pak ‘Standard’ cyclemotor
engine bearings & seals.
Big-end roller bearing 2.5mm × 7.8mm round-end. Set of
25–£12.50p
Main bearing (ball race) 20 × 47 × 14 /
6204—£6.
Some motors were originally fitted with main
roller bearing 20 × 47 × 14—POA.
Main seal 1⅛" × ¾" x 3/16" /
112-075-18—£5.
Outer crankcase bearing (ball race) 15 × 35 × 11 /
6202—£5.
Outer crankcase seal 1⅜" × ¾" × ⅜"
/ 137-075-18—£6.
Sinclair-Goddard Power Pak ‘Synchromatic’
cyclemotor engine bearings & seals.
Big-end roller bearing 2.5mm × 7.8mm round-end. Set of
25–£12.50p
Main bearing (ball race) 20 × 47 × 14 /
6204—£6.
Main seal (double-lipped) 1⅝" × 1⅛" ×
5/16" / 162-112-31—£5.
Clutch housing bearing (ball race) 15 × 35 × 1 /
6202—£5.
Clutch housing seal 1⅛" × ¾" × 3/16" /
112-075-18—£5.
Bearings in roller (×2) (ball race) 15×35×1 /
6202—£5 each.
Outer seal in roller 19-35-8—£6.
Ball Bearings:
1/8" diameter (freewheel), pack of 72
bearings—£1.50;
5/32" diameter, pack of 54 bearings—£2.00;
3/16" diameter, pack of 30 bearings—£1.50;
7/32" diameter, pack of 25 bearings—£2.00;
1/4" diameter, pack of 20 bearings—£2.00.
Stainless steel exhaust pipes:
James 2F autocycle—£45.
Hercules Her-Cu-Motor—£40.

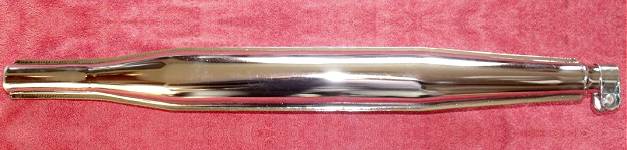

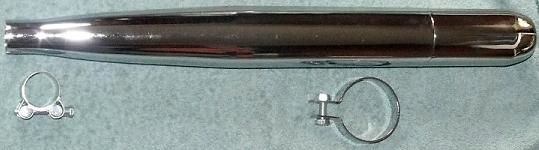

60mm ‘Round’ chrome moped silencer for 28mm
exhaust pipe, c/w barrel and clamp
fittings—£40 set.
Silencer end piece removable for cleaning baffle. Total
length 21". Suitable for mopeds and light motor cycles with
28mm diameter exhaust pipe.
CBA new chrome plated silencers, complete with clamp.
Central back-bolt mounting so can be fitted LH or RH.
Silencer for 28mm pipe—£75 each (Kerry Capitano
2-speed/3-speed/Auto/Grand Prix/etc).
Silencer for 30mm pipe—£75 each.
Honda PC50K1 (OHV model) new R.O.C. pattern exhaust system. Chrome plated finish, complete with heatshield on pipe—£42 each.
Kerry Capitano 2-speed, 3-speed, auto models. New chrome plated 28mm diameter exhaust pipe—Currently Sold Out; we hope to have more stock in November.
Mobylette/Raleigh. New chrome exhaust pipes.
Mobylette AV32, AV33, AV42, etc / Raleigh RM4, RM6, Wisp, RM8,
etc / Norman Nippy Mk5 / Phillips Panda Mk3—£30.
Mobylette AV89, SP50 / Raleigh RM5, RM11, RM12 / Norman Lido Mk3
/ Phillips Gadabout Mk4—£37
Mobylette M40/M50 type chrome exhaust pipes—£20.
14765 Inspection Plate for Mobylette/Brevete SG ET Silencer—£2 each.
Mobylette/Raleigh Exhaust nut—£4 Each.
Special 6mm nut flange, easier to get
a spanner on to.
Exhaust ring gaskets (modern compressive, asbestos free)
28mm (Lambretta moped etc.)—SOLD OUT
30mm (Mobylette / Raleigh etc.)
33mm (Kerry Capitano / Minarelli etc.)—SOLD OUT
35mm (Villiers 1F / 2F / 4F / 6F etc.)—£1 each.
Traditional compressive exhaust ring gaskets:
20mm compressive copper (Cyclemaster)—£1 each.
22mm compressive copper (Honda PC50) exhaust pipe/cylinder
head—£1 each.

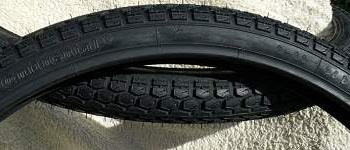

Vee Rubber 3.00×8 ‘Roadster’ tread pattern. Heavy duty 4-ply rate. 4mm deep tread. Good solid mini-tyre for Honda Stream/Gyro 3-wheelers—£18 each.
Vee Rubber 3.50×8 traditional ‘Roadster’ tread pattern. Heavy duty 4-ply rate. 6mm deep tread blocks. Good chunky mini-tyre for Triumph Tina, Triumph T10 & Raleigh Roma scooters—£20 each.
Vee Rubber 2.25×14 traditional ‘Roadster’ tread pattern. Nice firm tyre, 4-ply rated and nylon reinforced. 4mm deep tread blocks. Suits Honda Express, Yamaha QT50, etc—£15 each
Golden-Boy 2.50×15 (20×2½) Universal
pattern block tread tyres—£40 each.
4-ply nylon. Rated for 75mph. Fits: BSA Dandy, Ariel
Pixie, Elswick mopeds, etc; 15" rim size.
Mitas 2.25×16 Roadster pattern Whitewall ‘reinforced’ light motor cycle grade tyre—£30 each
Vee Rubber 2.25×16 ‘Traditional’ moped type tread pattern. 2-ply rated 100km/h—63mph. 3.5mm deep tread. Good solid moped tyre. Typically suits Tomos; Batavus GoGo, Bronco, Pronto, etc—£15 each
Vee Rubber 2.75×16 ‘Roadster’ tread pattern. 4-ply rated to 94mph/150kph. Chunky 5mm tread. Suit DKW Hobby, Manhurin, etc—£22 each.
Bronx 20×2×1¾, Traditional "Carrier" block
type tread style—£6 each.
To suit small-front-wheel Trade Carrier
cycles. 2mm deep tread pattern, which rolls round the tyre
to give better handling for the small wheel size.
Vee Rubber 2.00×17 ‘Traditional’ moped type tread pattern. 2-ply rated 100km/h—63mph. 3.5mm deep tread. Good solid moped tyre. Suit Mobylette M40, etc—£15 each
Vee Rubber 2.25×17 ‘Traditional’ moped type tread pattern. Heavy duty 4-ply rated. 4mm deep tread. Good solid moped tyre. Suit Mobylette M50, etc—£15 each
Mitas 2.25×17 MT MC11 sport tread pattern Blackwall moped tyre. Nylon re-inforced. 4mm deep tread pattern—£30 each.
Mitas 2.25×17 modern sport pattern Whitewall moped tyre. Nylon re-inforced. 4mm deep tread pattern—£38 each.
Sava 2.25×18 ‘Roadster’ pattern
‘reinforced’ light motorcycle grade
tyre—£25 each.
Original size to fit Mobylette AV89/SP50,
Raleigh RM5, Norman Lido Mk3, Phillips Gadabout Mk4. More
substantial construction than the old Michelin/Hutchinson
‘balloon’ tyres, these new Savas do ride
well.
Sava 2.25×18 ‘Roadster’ pattern Whitewall
‘reinforced’ light motorcycle grade
tyre—£30 each.
Original size to fit Mobylette AV89/SP50,
Raleigh RM5, Norman Lido Mk3, Phillips Gadabout Mk4. More
substantial construction than the old Michelin/Hutchinson
‘balloon’ tyres, these new Savas do ride well and
these new whitewall tyres look smart too.
Vee Rubber 2.50×18 ‘Roadster’ tread
pattern. 4-ply rated—£20 each
For anyone looking for 2.25×18 tyres
for their Mobylette AV89, SP50, Raleigh RM5, Norman Lido Mk3
or Phillips Gadabout Mk4, the Michelins are an obsolete tyre
and 2.25×18 is no longer available. We’re
recommending to fit this 2.50×18 in place of the
Michelins. We’ve fitted these tyres ourselves onto
these bikes, and they go in OK without any fouling of the
mudguard or chainguard back. The handling is transformed,
steering more positive, and riding much nearer to a motor cycle
than a moped. When you’ve tried one of these mopeds
fitted with these tyres, you’ll wonder why you didn’t
fit them years ago.
2.00×19 (23×2) 24-B Mitas M-02
‘Economy’ blackwall moped
tyres—£20 each.
Made in Czech Republic. Speed rated 31mph.
Inflated width is only 1.9", so these fit
really easily in the back of Phillips Gadabouts and other
applications where narrow internal width of the mudguards can
make the fit of wider tyres difficult.
2.00×19 (23×2) 24-B Continental KS10
‘blackwall’ moped
tyres—£30 each.
2-ply nylon re-inforced.
2.00×19 (23×2) Continental ‘Whitewall’
moped tyres—£35 each.
KKS10 tread pattern.
Heidenau 2.25×19 (23×2¼) Moped tyre.
‘Universal’ block tread pattern. 3mm deep
tread. Rated 180km/h. Made in
Germany.—£25.
Finally a 19" alternative to the
Continental. A good tyre, if you can just squeeze that
extra ¼" width into your mudguards!
2.25×19 (23×2¼) Continental
‘Whitewall’ reinforced moped tyres—£38
each.
KKS10 tread pattern.
2.50×19 (equivalent to 600×65 or
24×2½) Deestone tyres—SOLD OUT - Waiting
for re-stock
4-ply nylon rated at 120km/h (74mph). Traditional road
pattern tread, with blocks 5mm deep.
Golden-Boy (Korea) 2.50×21 Universal pattern block tread
tyres—£50 each.
In ‘trail’ style block pattern very similar to the
old block tread Dunlop Universal 2.25×21, and former Kings
2.50×21 tyres. 4-ply nylon. Rated for
93mph.
Fits: Villiers powered 2F autocycles and 1F,
4F, 6F light motor cycles. etc. Late ’40s to early
’60s. 7mm deep tread blocks. Tyre diameter is
26½", so the same diameter as the old Kings tyre.
We've specially re-profiled the protruding side blocks to
reduce the inflated width to 2.50", so these tyres should now
clear the mudguard brackets in all autocycle and light motor
cycle applications.
This is the tyre we’re now recommending as the best fit
to replace the old 2.50×21 Kings for 2F autocycles and
light motor cycles with 21" wheel size.
2.50×21 Kings Tyre, 4-ply rated. 2½" tread
width. ALL SOLD OUT—NO MORE STOCK.
In ‘trail’ style pattern.
Similar to the old block tread Dunlop
Universal 2.25×21, as originally fitted to all Villiers 2F
powered autocycles, 1F, 4F, 6F, etc, powered light motor cycles
of late ’40s to early ’60s.
Note: this was the nearest compatible market tyre
available to suit these machines, but trade supplies of tyres
from Kings Tyres started becoming ‘difficult’ during
2014, and the company is now reportedly in administration.
We’re hoping that someone may resume the business or
acquire the moulds and return this size tyre pattern under
another brand—but don’t count on it!
2.75×21 Vee Rubber Tyre, nylon reinforced 6-ply
rated. In modern ‘Trail’ tread
pattern—£30 each.
Reinforced construction rated over 100mph. Chunky 10mm deep
tread arranged in staggered blocks, so the tyre should give a
reasonably smooth ride for road use.
Though this tyre is marked at
2.75" wide, it actually only measures
2.60" wide and, more importantly, the
tread blocks are a ROUNDED PROFILE and DO NOT stick out beyond
the width of the tyre body. Because of the deep
10mm tread blocks, the actual
diameter of this tyre measures 26¾", where the old 2.50×21 Kings measured
26½", so it may appear
slightly closer on the radial fit inside the mudguard.
Fitting this tyre into critical autocycle applications
(particularly James and New Hudson), which can are tight for
clearance, can be problematic. Other makes like Bown, etc,
which have large mudguard clearances are less prone to fitting
issues. The mudguard stay brackets do need to be neatly
nested against the inside of the mudguard, and the wheel does
need to run true, or there may be rotational fouling. The
chain adjustment may also need to be within the ‘middle
range’, or there could be some contact at full adjustment
ends front or rear. This tyre needs to be deflated when
fitting the wheel back into the rear dropouts, and be prepared to
have to lever it into place by the spindle, because the 6-ply
rating does make the tyre too firm to compress by hand, even when
it’s flat.
Please check your available
fitting space prior to ordering.
600×50B (24×1½×2) Chambrier blackwall tyres, Nylon re-inforced to ISO-9001—£40 each.
600×50B (24×1½×2) Chambrier whitewall tyres, Nylon re-inforced to ISO-9001—SOLD OUT (Chambrier don't want to sell to British customers any more).
26×2 (2.00×22) Continental tyres,tyres, as suited to NSU Quickly, Raleigh RM1/RM2, etc. £35 each
26×2×1¾ ‘Duro’, 54-571,
650×50C—£15 each.
Nylon re-inforced Autocycle/trade bike tyres. Round profile
‘Roadster’ pattern tread. Rated inflation up to
40psi.
Special offer: 2 new tyres & 2 Schrader valve inner
tubes, all for only £35!
26×2×1¾ ‘Journey’ nylon
re-inforced autocycle/trade bike tyres—£10 each.
Rated iinflation up to 50psi.
Special offer: 2 new tyres & 2 Schrader valve inner
tubes, all for only £25!
26×1½ Michelin ‘World Tour’
tyres. Equivalent sizes 35-584 (650 ×
35B)—£10 each.
To suit early Cyclemaster and BSA Winged
Wheel rim size, old Post Office bikes, etc.
Special offer: 2 tyres and 2 inner tubes (Schrader valve)
for £23.
26"×1-3/8" Bronx/Teckno traditional
‘Roadster’ heavy duty, old-style, chunky 2.5mm block
tread pattern cycle tyre—£8 each.
Special offer: 2 new tyres & 2 Schrader valve inner
tubes, all for only £20!
2×12 (Wisp, Ariel 3)—£3 each.
2.25/2.50×14, threaded valve—£6 each.
2.25/2.50×16, threaded valve—£6 each.
2.50/2.75×16, Schrader valve, threaded stem—£6 each
2.00/2.25×17, threaded valve—£5 each.
2.25/2.50×17, threaded valve—£6 each.
2.25/2.50×18, Schrader valve, threaded stem—£6 each.
2.50/2.75×18, Schrader valve, threaded stem—£8 each.
2.00×19—£6 each.
24×1.50/2.125—600×50B inner tube, Schrader
valve—£5 each.
Suits tyres marked 24×2, 25×2,
24×1½×2, 2.00×21, 600×50B,
etc.
2.50×21 (Autocycle)—£7.50 each.
26 × 2 / 1¾ Schrader
valve—£4 each.
Special offer: 2 new
26×2×1¾ autocycle/trade bike tyres and 2 inner
tubes, all for only £25.
26 × 1.3/8 / 1½ " Schrader
valve—£3 each.
Special offer: 2 new 26×1.3/8 or
2 new 26×1½ tyres and 2 inner tubes, all for only
£20.
Valve extension 90° elbow, screws on top of fitted valve, and rotates to any angle, allows easy valve access, particularly effective for small wheel machines, monkey bikes, Raleigh Wisp, Ariel 3, etc, chrome plated—£4 each.
12" (Wisp, Ariel 3, Clark Scamp, etc),
14",
16/17",
18/19",
21" (2F autocycles, 1F motor cycles, etc.)
26" (early autocycles, Cyclemaster, Winged Wheel, trade bike,
etc).
All sizes £1 each.

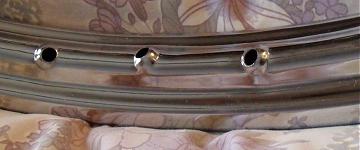

26"×2"×1¾", Westwood pattern rim with special 32-hole pierce. 1mm/19 gauge (0.040") section. Spoke hole 0.180" diameter. Valve hole ¼" (0.250") diameter (drill out to 5/16"/6mm if required to suit Schrader valve inner tube)—£40 each.
New chrome plated rim, but showing a poor level of polish with a grainy commercial finish. Pierce shows a pretty sharp burr too—but these are a very difficult and non-standard rim to source, and this is all we can offer. Suits early Norman and some other autocycle makes with 32-hole front hub, and Norman Cyclemate front.
26"×2"×1¾", 36 hole, new chrome rims for early autocycle and trade bikes. 1mm/19 gauge (0.040") section. Spoke hole 0.180" diameter. Valve hole 1/4" (0.250") diameter—£25 each
Note: this rim size has been unavailable for a number of years now, since the last of the Van Schothorst stock dried up. The rims are plain of any marking, but they are certainly of Chinese origin. The section profile appears more comparable to the original Dunlop, where the Van Schothorst form used to be a little more ridged in the centre. New chrome plated rim, but showing a poor level of polish with a grainy commercial finish. In terms of thickness, the original Dunlop rims were 18 gauge (0.048"). These Chinese rims are made from 1mm material, equivalent to 19 gauge (0.040"). The Van Schothorst rims used to be produced in 21 gauge (0.032"), which was only a light cycle gauge section, and not well suited to the powered application of autocycles. The thicker section of these Chinese rims does make them perform much better than the Van Schothorst rims. The pierced spoke hole size is 0.180" (the Van Schothorst rims were just the same in this aspect), which may require cleaning out slightly to build, since Suffolk Wheels report that the standard 12 gauge spoke nipple is 0.200" diameter. The pierced (cycle) valve hole size is 1/4" (0.250"), which will require opening up to 5/16" (0.312") for anyone wishing to fit Schrader valve inner tubes.
26"×2"×1¾", Westwood pattern rim with special 40-hole pierce. 1mm/19 gauge (0.040") section. Spoke hole 0.180" diameter. Valve hole ¼" (0.250") diameter (drill out to 5/16"/6mm if required to suit Schrader valve inner tube)—£40 each.
New chrome plated rim, but showing a poor level of polish with a grainy commercial finish. Pierce shows a pretty sharp burr too—but these are a very difficult and non-standard rim to source, and this is all we can offer. Suits Norman Cyclemate rear, and some other autocycle makes like Cyc-Auto with 40-hole rear hub.
21" × 2.25/2.5" (1.50) Radaelli ‘Westwood’
pattern, chrome plated, 36-hole, front and rear rims (Yes, they
are different).
Front rim—£46 each.
Rear rim—£46 each.
Suitable for tyre sizes 2.25–21 or 2.50–21, as used
on 2F model autocycles, etc.

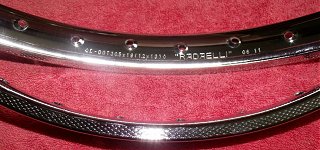

Note: Inside of rim stamped
=E-21×1.50-DOT="RADAELLI"= There are no markings on
the presentation faces. Pierced hole diameter
0.240"/6.08mm.
Special Note: rims are pierced differently to suit front
and rear due to the different diameters of spoking through the 4"
front brake drum, and the spokes being laced through the larger
diameter of the rear sprocket. The rims are also
‘handed’ since the deeper angle pierce is to suit the
brake side for front and rear. Rims are, therefore,
identified by removable sticker as ‘front/brake side’
and ‘rear/brake side’ for assembly
purposes.
600×50B Endrick pattern new chrome rims (24"
equivalent). 36 hole pierce for 7 gauge diameter
spoke nipples (0.179"/4.5mm). Valve hole sized 9mm to fit
Schrader valve inner tube)—Sold Out
For old Mobylette models with tyres marked
24×2, 25×2, 600×50B, etc.
24×1.75 (26–507/20×1.0), Endrick pattern new
chrome rims (24" equivalent). 36 hole pierce for
7 gauge diameter spoke nipples (0.179"/4.5mm). Valve
hole sized 9mm to fit Schrader valve inner
tube)—£45.
Note: 20" diameter rim. Fits
tyre sizes marked 24×1.75×2 and/or 1.75×20.
Marked: ‘Radaelli – Made in Italy – 26 ×
507 – 24 × 1.75’ Stickered: ‘Steel Chrome
Italcerchio’ Typically for some Bianchi Aquilotto, Itom
Junior, some Itom Astor models.

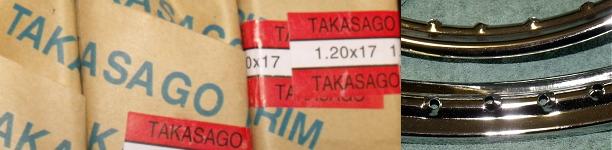

New chrome-plated 19"×1.40"×36-hole rims,
‘Westrick’ pattern, typically suit tyre size
2.25×19 and 2.50×19. Takasago Industrial
Japanese made. Spoke hole size 6.4mm
(¼")—£30 each.
Rims are pierced and polished before plating, so very good chrome
finish, and there are no piercing burrs to the spoke holes.
Top quality rim for the price.
Note: 1.40" internal width.

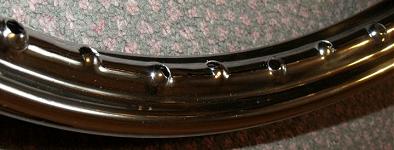

2"×19" (1.20) Italcerchio ‘Endrick’ pattern 36-hole dimpled rims, chrome plated finish. Note: 36-hole pierce typically for Raleigh RM6 Runabout, Mobylette AV42 and other mopeds. Suitable for typical tyre sizes 2.00×19/23 or 2.25×19/23×2¼—£42 each.
These ‘square-sided’ rims are the
form particularly preferred for caliper braked arrangements with
brake blocks working on the side of the rim. Both sides of
the rim are ‘diamond imprinted’ for better block
braking performance.
Note: outside of rim stamped: * [—DOT
30.5×19 (1.2×19)] * "Italcerchio" Batch: 05
15. Pierced spoke hole nominal diameter
0.237"/6.00mm. Valve hole 0.335"/8.50mm for Schrader
valve. Chrome finish can be a little grainy in places on
the bridge of the rim due to inconsistent polish in the centre
section + some ‘solution spots’ to shine out (typical
‘average’ quality from the manufacturer).
So who are "Italcerchio"?
It seems that in 2013, ‘Radaelli’ sold out their
business to new owners Cerchio, who initially represented the
business as Cerchio-Radaelli, but have now adopted the new
‘Italcerchio’ brand for rims produced from the same
Radaelli factory, with the same equipment, by the same
people. Latest production now seems to being imprinted with
the new branding as of 2014.
2"×19" (1.20) Italcerchio ‘Westwood’ pattern 36 hole rims. Suitable for typical tyre sizes 2.00×19/23×2 or 2.25×19/23×2¼. £48 each.
Note: Inside of rim stamped: = Italcherchio = 03-15- & =E-19×1.20-DOT= There are no markings on presentation faces. Pierced spoke hole diameter 0.240"/6.08mm. The rim is formed from 0.048" (18 gauge)/1.2mm steel, so these are good solid construction. These rims are latest production/import 03/15 batch. An independent sample inspection by a professional wheel builder reports ‘The quality of the pierce, welded joint, polish and plating standard on this latest 03/15 batch is very good indeed. Good consistent quality finish’.
2"×19" (1.20) 32-H Italcherchio ‘Westwood’ pattern 32-hole rims. Suitable for typical tyre sizes 2.00×19/23×2 or 2.25×19/23×2¼. £48 each.
32-hole pierce is particularly for Honda PC50
front rim.
Note: Inside of rim stamped:
‘=E-19×1.20-DOT=’ & ‘Italcherchio
03/15’ (New import batch date code). There are no
markings on presentation faces. Pierced spoke hole diameter
0.240"/6.08mm. The rim is formed from 0.048" (18
gauge)/1.2mm steel, so these are good solid construction.
The quality of the polish, plating standard, and welded joint on
this latest 03/15 batch is very good indeed. The pierce is
a little sharp, but better than some we've seen.
New chrome-plated 18"×2.25/2.5" (1.50) Rigida Chrolux ‘low-profile Westwood’ pattern chrome plated steel 36-hole rims—£45 each.
Suitable for tyre sizes 2.25×18 & 2.50×18 as
typically fitted to Mobylete AV87, AV88, AV89, SP50, AV92,
SP94TT, Raleigh RM5, Norman Lido Mk3, Phillips Gadabout Mk4,
etc.
Note: Outside of rim stamped
‘= E—1,5 × 18—DOT—RIGIDA
Chrolux Made in Italy =’
Batch date code marked ‘- 0214 -’
Pierced spoke hole diameter 0.240"/6.08mm.
Valve hole pierced 0.330"/8.5mm for Schrader valve.
Rim weight 1.6kg.
New chrome-plated 17"×1.40"×36-hole rims,
‘Westrick’ pattern, typically suit tyre size
2.25×17 and 2.50×17. Takasago Industrial
Japanese made. Spoke hole size 6.4mm
(¼")—£28 each.
Rims are pierced and polished before plating, so very good chrome
finish, and there are no piercing burrs to the spoke holes.
Top quality rim for the price.
Suit Mobylette M50V, NVT Easy Rider, Honda C50, C70, C90,
etc.
Note: 1.40" internal width.
New chrome-plated 17"×1.20"×36-hole rims,
‘Westrick’ pattern, typically suit tyre size
2×17 and 2.25×17. Takasago Industrial Japanese
made. Spoke hole size 5.6mm (7/32"). New
stock—£24 each.
Rims are pierced and polished before plating, so very good chrome
finish, and there are no piercing burrs to the spoke holes.
Very good quality rim for the price.
Suit Mobylette M40, M50V, Honda C50, C70, C90, etc.
Note: Note 1.20" internal
width.
2"×16" (1.20) 36-H Italcherchio ‘Westwood’ pattern 36-hole rims. Suitable for typical tyre size 2.25×16. £48 each.
For Tomos, Garelli, Batavus, etc.
Note: Inside of rim stamped:
‘=E-DOT-1.20 x 16"-DOT=’ & ‘Italchercio
01/14’ (New import batch date code). There are no
markings on presentation faces. Pierced spoke hole diameter
0.240"/6.08mm. The rim is formed from 0.048" (18
gauge)/1.2mm steel, so these are good solid construction.
The quality of the polish, plating standard, and welded joint on
this 01/14 batch is very good. Nice bright chrome.
The pierce is a little sharp, but that’s fairly
normal.

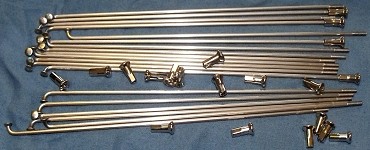

Stainless Steel 12-gauge spoke sets (36 spokes +
nipples)—£50 per set.
12G/0.104"/2.5mm, sapim leader silver plated,
threaded for 11mm from end at 56tpi. C/w matching 12G × 56tpi chrome plated brass nipples, shank
size 0.200"/5mm. All 90-degree J-bend head, length measured
from under head to end of thread.
Other length specifications can be produced in 12G,
13G/0.092", & 14G/0.080".
Autocycle with 26" front wheel and British Hub Co 4" half
width hub 18 × 270mm & 18 × 215mm, set of
36. No current stock, but available to
order—£50.
Mobylette AV76–78, models with 100mm Prior or Atom
full-width hubs and Endrick pattern rims, Front & rear 197mm,
set of 36—£50.
Mobylette AV89, SP50; Raleigh RM5; Norman Lido Mk3; Phillips
Gadabout Mk4 front, 178mm, set of 36—£50.
Mobylette AV89, SP50; Raleigh RM5; Norman Lido Mk3; Phillips
Gadabout Mk4 rear, 180mm, set of 36—£50.
NVT Easy Rider front, 168mm, set of
36—£50.
NVT Easy Rider rear, 186mm, set of 36—£50.
Norman Nippy Mk2 type-2, Mk3, Mk4; Norman Lido Mk1, Mk2,
Super Lido; Hercules Corvette; Phillips Gadabout P39, P45,
P50; models with British Hub Co. full-width hubs and Endrick
pattern rims, front & rear, 215mm, set of
36—£50.
Raleigh RM6 Runabout front, 227mm, set of
36—£50.
Set of 36 × 11g galvanised spokes + 36
nipples—£18 per set.
11G = 0.116" / 3mm diameter. Spoke head
formed at 90 degrees. 200mm length (measure from under
head), with 12mm threaded. Nipple shank diameter 0.210" /
5.33mm in plated finish with gold passivate. Typically
suits Honda PC50 wheels, and Raleigh/Mobylette moped wheels with
19" Endrick pattern rims and 80mm hubs, with spoking flange
diameter 105mm centres.
May suit other wheels—check your required spoke
length.
Set of 36 × 11g single-butted galvanised spokes + 36
nipples—£18 per set.
11G = 0.116" / 3mm diameter shank with
single-butted stock underhead 10G = 0.128" / 3.2mm. J-bend
spoke head formed at 90 degrees. 160mm length (measure
from under head), with 12mm threaded. Nipple shank diameter
0.210" / 5.33mm in plated finish with gold passivate.
Check your required spoke length.

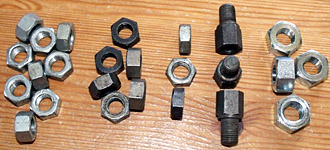

M11 × 1mm pitch continental axle nuts GR.8 grade
steel.
Full nut, 10mm wide—£2.50 each.
Half nut, 5mm wide—£2 each.
Lock nut, 3mm wide—£2 each.
Bi-Bi ‘Heavy Duty’ caliper brake blocks, 50mm
× 17mm block × 20mm deep, 6mm plain stud
mounting. £5 pair.

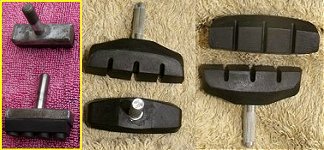

"The Best" extra chunky blocks for Endrick
pattern moped rims. Typical fitting for Mobylette &
VéloSoleX type caliper brakes.
Illustration also shows original Mobylette AV42 blocks (on
left, outlined in yellow) as a comparison

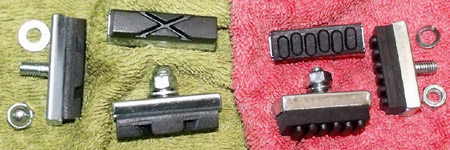

Cycle brake blocks, 35mm × 12mm LH&RH blocks, plain
nut fixing on 6mm thread × 11mm long—£1.50p per
pair. (red background)
Cycle brake blocks, 40.5mm × 11mm LH&RH blocks, dome
head nut fixing on 6mm thread × 11mm long—£2
per pair. (green background)
Fibrax Resilion Anchor Rear cycle brake blocks for Resilion
Anchor brakes. £1 each.
1.17/32" long (2.531" or 39.9mm) × 1/2"
deep × 15/32" wide. Can send more details if you need
to further confirm specification/suitability. Genuine
Fibrax new/old stock.
843G Brake shoes 140mm × 25mm—£15 pair.
Fit: Ancilloti PSV 250 MX 1983?
rear;
Aspes CS75 Navaho/125 Juma/Hopi/Duma rear;
Fantic 50 Strada Super Six 1973? rear, 50 Strada 1982?,
1980 Enduro? rear, 80 Cross Compet 1981? rear;
Gilera 80 TG 1/2/3 rear, 125 Arcore front, 125 GR1 rear,
125 E1/E1 Competition rear, 150 Arcore front;
Grimeca Hubs various makes 140 × 25;
Kram-it (Kramer) EP250/EC 250 rear, MC250/MC250LC &
MC500 rear, PUCH M50 Sport 1973-74 front & rear;
SVM (SWM) XN506 Enduro 1984? F&R, 125/175/250/347/440
Enduro ?1983 F&R, 125/250/440 Cross ?1983 F&R.
Brake shoes type H322 c/w springs—£8 pair
80mm Ø × 18mm wide. Fit:
Atom 80mm hubs on Honda Camino,
Novio, Graduate, Amigo; Mobylette N40 & M50V
models;
Leleu 80mm hubs Puch Maxi N & NK spoke wheels,
SW & SKW spoke wheels, Maxi-59 2-speed auto,
Executive/S50-Sport/50-Super cast wheel 1-speed/2-speed auto
models with screwed hub;
Peugeot most moped & mofa models, 103 Pro &
SP3;
Kreidler 50MF2, 50MF4 (later models), 50 Flory MF 20/22,
50MP1 (later models);
KTM 50-SX / SXR Pro Junior/Senior/Adventure
1996–2007
908 brake shoes 90mm diameter × 18mm wide c/w
springs—£8 pair.
Benelli 1978 onward, Motorella, Front
& Rear;
Garelli Eureka, Gulp, 50Vip, Noi, (spoked wheel models),
Front & Rear;
Gilera CBA50, ec1 50, ECO50, All Front only;
Kreidler 50 MF4 & MP1 early models, Front &
Rear;
Malaguti up to 1982, Chopper 25/40, 50LX Sport, 50 Ronco
RCW, VA Olympique, Chopper 80, all Rear only.
NVT Easy Rider, Front & Rear;
Piaggio Free, 1992–2000, Front only.
Tomos A3, etc, models with spoked wheels, Front &
Rear.
806 Brake shoes 100mm ×
20mm—£10 pair.
Gilera
Rear: Storm 50, 1994–95; Easy moving 50, 1995–96.
Piaggio
Rear: Sefera Base 50, 1991–93; Sefera 50 RST,
1995–97; Free 50, 1992–2000; Zip 50 Base (drum
model), 1992–96; Zip Fast Raider, 1993–97; Sefera 50
Maquillage-2, 1994; NRG 50, 1994–96; Zip & Zip 50
Bimodale, 1994–97; NTT 50, 1995–96; Typhoon 50,
1994–97; Typhoon 50X, 1998–99; Zip 50 Base (disc
model), 1995–96; Zip 50 Elettrico, 1992; Free 50 (disc
model), 1995–2000; NRG 50 RSt (DT/DD) MC2, 1996–97;
SKR 80 City, 1999.
H330 Brake shoes 130mm ×
25mm—£15 pair.
Honda
Front: CG125 BR-K/BR-T/95/S/T/W/M1/1, 1985–2003; CR125
RZ/RA/RB/RC, 1979–82. Rear: CR250 RB, 1981–.
Front: XL250 RC, 1982; XL250 RE/RF, 1984–85
Rear: CR480 RC
H304/VB126 Brake shoes 110mm ×
25mm—£10 pair.
Honda
Rear: C50 N (single seat model), 1995;
C50 P/S/V/X/Y/1/2 (single seat), 1996–02; CB50J,
1981.
Front & Rear: CD50 ST/SV/SW/SX, Benley 50S, 1996–99;
CL50 V/X, Benley CL50.
Rear: CRM50 RN/RP//RR/RT, 1993–96; MB5 S, 1980–82;
MBX50 SD/SF, 1983–85.
Front & Rear: C90 all models, 1993–2003.
Rear: CB100N, 1978–80.
Lots of other Honda models—contact for further details
of applications.
Rear: Hartford VR125, 2000 - 03 Hongdou GY125, 2006–08;
Lifan LF50 QGY; Lifan Smart 50/125; Lifan LF100A.
Front & Rear: Lifan 50 QGY 1/2.
H301/VB134 Brake shoes 90mm ×
17mm—£8 pair.
These brake shoes are a direct equivalent for
the original Honda ASK1037SCFF brake shoe.
Honda
Front & Rear: PC50 K1; Z50 R, 1979–85; XR50 R1/R2/R3,
2001–03.
Front & Rear: CRF50 F4–F9, 2004–09.
Front: MB50 ME Aero, 1984; MF/MG/TH Vision, 1986–88; NE50
MF/MG Vision, 1986–87.
Front & Rear: NC50 K1/K2 Express, 1979–82.
Front: NC50 C Express-2, 1982; NC50 A/B Express-3 Delux, 1982;
NP50 D Melody Mini, 1983; NS50 Melody/MSB Melody Delux, 1982.
Front & Rear: NT50 F/G/H Melody Mini, 1985–87.
Front: NX50 A/B/MB Caren, 1980–82; QR50
D–E/M–Y, 1983–2003; Suzuki DR70 & Yamaha
TT-R50.
H302/VB141 Brake shoes 95mm ×
20mm–£10 pair.
Honda
Rear: NB50 ME Aero, 1982; NB 50 MF/MG/TH Vision, 1986–88;
NE 50 MF/MG Vision, 1986–87; NC 50 C Express-2, 1982; NC 50
A/B Express 3 Delux, 1982; ND 50 C/ML Melody-2 Delux, 1982; NH 50
Lead 50 SS, 1984; NH 50 Lead AF01/D716, 1984–85; NP 50 D
Melody Mini, 1983; NS 50 Melody, 1982; NU 50 Runaway, 1982.
Front & Rear: NV 50 MSD Stream, 1984.
Rear: NX 50 A/B/MB Caren, 1982; NH 80 MD-D/MD-G , 1983–86;
NH 80 Lead 80, 1985; PX50, 1982–87; QR 50 D/E/F,
1983–87.
Rear: SYM Fiddle 50, 1999–2005.
Rear: Barossa Mini 50/Python, 2003–05.
Rear: Kymco DJ50 Refind.
Rear: Quadzilla Buzz 50, 2003–06.
H336 brake shoes 110mm ×
25mm—£10 pair.
Honda number JB NX GG
Honda
Rear: SH50 E/H/K/M/P/DP City Express 1985–96; SH75 Scoopy
H/K/M/P/DP/S/DS, 1987–95; Lead 90, 1988–.
Mobylette brake
shoe set for 70mm Atom hub, SOLD OUT
as typically fitted to Mobylette M40/N40
models front hub. 70mm diameter × 16mm
wide.
Mobylette brake shoe set for 70mm ‘Atom’
hub—£7 pair.
as typically fitted to Mobylette M50V models,
etc. 70mm diameter × 20mm wide.
12mm wide cam heel, centrally disposed on main shoe.
12mm wide pivot is offset by 3mm one side and 5mm on the other
side, so shoes are handed as LH
and RH pairs.
Mobylette AV46–48 (No.14678), Raleigh RM4 (No.
MTK117)—£15 pair.
Prior/Atom 90mm hub. 90 × 20mm
with 11mm eye pivot and single spring to cam. Also fitted
Phillips Panda Mk3 & Norman Nippy Mk5.
Adige o1003
Mobylette AV89, SP50 / Raleigh RM5. Genuine/original
Ideal 100mm brake shoes c/w springs, Raleigh No.MTK144.
New—£25 pair.
Also fit rear brake Raleigh RM11, RM12,
Phillips Gadabout Mk4, Norman Lido Mk3.
90mm brake shoes, 16mm wide for early NSU Quickly models with
small 90mm steel hub.
Type-1 with twin springs—£15 pair (left—red
shoes on blue background).
Type-2 with single U-spring—£15 pair
(right—black shoes on orange background).
J1042 Brake shoes 90 ×
19mm—£15 pair.
For Nyman Bolagens 90mm full width hub,
1961–68
Fits: MCB, Monark, Crescent. and other makes with Nyman
hub.
Raleigh Runabout RM6/RM8 early MTK200 eye-type brake shoes for 85mm Atom rear hub, c/w spring—£20 pair.
Raleigh Runabout RM6, RM8, RM9 (front), Wisp (rear) Genuine/original late type MTK200 split-pivot type brake shoes for 80mm hub, c/w springs. New—£12 pair.
Raleigh Wisp new MSB210 front brake shoes assembly: pair of brake shoes with springs, fulcrum pivot, and cam. Complete replacement kit—£40.
S602 brake shoes 130mm ×
28mm–£15 pair.
Suzuki
Front: GP100, 1979–82.
Front & Rear: TS100, 1973–87; DR125, 1982–2001;
GP125, 1978–84.
GS/GT/GX/GZ 125, 1974–2010; TS125, 1972–84.
GT/TS 185, 1973–81.
DF/DR/GT/SB200, 1986–2000.
GN/GZ/RM/TU/VL 250, 1976–2001.
Lots of other Suzuki applications; enquire for further
details.
Kawasaki
Front: KH100 A2–G8, 1978–87; AR/BN/KE/KH/KX 125,
1976–98; KDX/KE 175, 1976–82; Z200 A1-A6, 1977–
83.
Other Kawasaki applications, etc.
Hartford HD125/150L, 2000–04.
Hyosung, Lifan, & PGO 125s.
S603 Brake shoes 110mm ×
30mm—£10 pair.
Suzuki
Front & Rear: A50, 1971–76; AP50, 1975–78; F50,
1971–73; TS50KN, 1979.
Front: TS50X/Z/D, 1980–83.
Rear: ZR50 KEN/KEX X1, 1979–83.
Front & Rear: A100 (all models), 1974–80.
Rear: GP100 C-UL, 1978–92.
Lots of other Suzuki applications; enquire for further
details.
Kawasaki
Front & Rear: AE50 A1/A2 1981–82.
Rear: AE50 A2-C10, 1981–2007; AR80 A1–C8,
1981–91; KC–KM 100, 1978–98.
Other Kawasaki applications, etc.
S624 brake shoes 120 ×
25mm—£15 pair.
Suzuki
Front & Rear: AH50N, 1992–95.
Rear : AJ/AY/AZ 50, 1992–08; UF/UR/UX 50,
1999–2003.
Front & Rear: CP50/80 CHF, 1985–93.
Rear: AH100 & P, 1992–96; AN & UE 125,
1995–2008.
Front: LT160, 1989–2004.
Rear: Derbi 50 models, 1993–2005.
Other applications with: Cagiva, Garelli,
Italjet, Atala, Piaggio, &
PGO.
VB322 Brake shoes 100mm ×
25mm—£10 pair.
Suzuki
Front: TS50XKE, 1984.
Rear: TS50KKJ, 1988.
Front & Rear: FZ50N/T/X/Z/D, 1979–83; CS80CD (Roadie),
1983.
VB212/Y504 Brake shoes 110mm ×
25mm—£10 pair.
Front: YB100, 1982–86.
Front: YZ 100 G/H, 1980–81.
Rear: RX50MK, 1983.
Rear: TY250 D/E, 1977–78; TY250 S/R, 1984–92.
Front & Rear: MX80G/H/J, 1980–82; DT 80H/J,
1980–82; RS 100 B/C, 1975–76.
VB226 Brake shoes 95mm ×
20mm—£10 pair.
Yamaha
Front: PW80B/D/E/F/G/H, 1991–96; YZ250H, 1981.
Rear: SH50A/B/D/E/F/G/H, 1990–96.
Front & Rear: CY50D/E/F/G/H, 1992–96; CG50A/B Jog,
1990–91; CA50K/L/N/S/Riva, 1983–86; YZ80G/H/J/K/L/N,
1980–85.
Y519 Brake shoes 95mm ×
20mm—£10 pair.
Yamaha
Rear: CG50 Jog, 1988–92.
Front: CY50 Jog-In, 1991–95.
Rear: CA50 Salient, 1983–85.
Front & Rear: LC50M Bop, 1980 Rear : MS50, 1985–86;
SA50M/ME Passola, 1980–84.
Front: YJ50R (5AU1-3) Vino, 1998; YV50 (5BM2) Jog Space
Innovation, 1997.
931/931G Brake shoes 90mm ×
18mm—£10 pair.
Tomos
Front & Rear: moped with cast wheels
Benelli
Front & Rear: 50 G2 Elle, 1979–;
Garelli
Rear: Formuno 50, 1987–; 50 Team Matic 1988–.
Front & Rear: 50 Vip/Noi/Basic Alu wheel
Malaguti
Rear: 50 RGT Strada 1983–;
Front & Rear: 50 Custom Fox 1987–; 50 Dribbling
1987–; 50 Fifty RV 1987–; 50 Ranocchio 3-wheels
1987–.
Rear: 50 Grizzly 10 CE, 2008–09; 50 Grizzly 10,
2001–07. Front & Rear: Grizzly 12 CE, 2008–09;
Grizzly 12, 2001–07; Grizzly RCW4, 1990–94.
Rear: Grizzly RCX 10, 1990–2000.
Front & Rear: Grizzly RCX 12, 1990–2000.
Puch
Front: Maxi 50 Executive cast wheels/1-sp auto, Maxi S50 Sport
cast wheels / 1-sp auto, Maxi 50 Super cast wheels / 2-sp auto,
Magnum 50 Automatic Kids bike.
Y501/VB224 Brake shoes 80mm ×
17mm—£8 pair
Yamaha
Front: SH50, 1987–2001; SH50M, 1987–92.
Front: CG Jog, 1988–92; CA50 Salient, 1983–85.
Front & Rear: MA50M 'QT50', 1980–86; MJ50M 'Towny',
1982.
Front: MS50, 1985–86.
Front & Rear: PW50 H/J/K/S/U/90/93-10, 1980–2001; PW50
Y-Zinger, 1990–2001.
Front: SA50 M/ME 'Passola' 1980–84.
Front & Rear: QT50, 1993.
Old Mobylette caliper front brake Pivot Bolt c/w Special Locknut, part no 14908. New—£3.
Mobylette caliper front brake parts. All NEW/old
stock.
Brake equaliser wire springs:
14910 Small (from 1955) 120mm wide × 50mm
high—£4.
18094 Medium (AV42) 140mm wide × 75mm
high—£4.
21013 Large (Cady) 180mm wide × 100mm
high—£4
14911 Cast alloy clamping piece for equaliser wire + 14912 Cable
clamping bolt/nut/washer—£7.50p per set.
Raleigh RM1 & RM2, Hub brakeplate levers.
LB149 ‘Cam Lever’ for front wheel. Fits RM1,
RM1c and RM2c models. New—£3 each.
Batavus Go Go, Pronto, Bronco, etc. Front fork
‘shell’ bush. New—£2 each.
(4-per leg / 8-per full fork set).
BSA Ariel 3 Front Suspension Rubbers—£25
set.
1 × Bump Rubber 97-3730 2¼" O/D × 5/8" I/D × 1½" H.
1 × Rebound Rubber 97-3729 1½" O/D × 5/8" I/D × ¾" H.
Moulded in 80–85 Shore rated natural rubber.
Left: Front suspension rubber bands for
Excelsior/Francis-Barnett Autocycle girder forks,
etc—£4 each.
Size 80mm O/D × 68mm
I/D × 20mm wide
× 6mm thickness with 260mm outer circumference. 4
bands per assembly, 2 each side.
These 6mm thick bands will only fit 2 bands together (1 inside
another), so total of 12mm rubber thickness.
Right: Excelsior band fork rubber buffers—£4
each.
Size 1 7/8" O/D ×
13/16" I/D × 7/8" long
moulded in 80-shore rated rubber. 2 buffers per assembly, 1
each side of the fork bottom yoke. They act as steering
buffers to stop the forks from hitting the fuel tank.
Front suspension rubber bands for early Mobylette AV89 &
Raleigh RM5 leading-link forks—£4 each.
Size 85mm O/D × 75mm
I/D × 15mm wide
× 5mm thickness with 275mm outer circumference.
New ‘correct-to-size’ moulding, which don’t
require slitting down to width (which was a requirement in
adapting the 20mm bands). 6 bands per assembly, 3 each
side. These 5mm thick bands will fit 3 bands together (1
inside another, inside another), so total of 15mm rubber
thickness.
Rubber suspension bands for general
applications—£4 each.
Size 85mm O/D × 75mm
I/D × 20mm wide
× 5mm thickness with 275mm outer circumference.
These 5mm thick bands will fit 3 bands together (1 inside
another, inside another), so total of 15mm rubber thickness and
20mm width for maximum strength.
Suspension bands can be slit down as required
to suit other thinner width applications, eg: Rabeneick,
Victoria, Royal Enfield ‘Flying Flea’,
etc.
Honda PC50 front suspension bush kits, complete set of 8 bushes—£16.
Honda PC50 front suspension pivot bolt & tube sets in stainless steel (set of 4)—SOLD OUT.
Mobylette/Motobécane front fork rubber gaiters—£12 pair. Bores 24mm top, 17mm bottom × 75mm long. New moulded stock. Suit M40, M50V, 51V models, etc.
Mobylette/Raleigh front fork bush—SOLD OUT
20.5mm O/D × 15.8mm
I/D × 30mm long.
Mobylette/Raleigh Front suspension top parts.
Top anchor for fork spring, zinc die-cast (long), M10
thread. New—£3.
Top anchor for fork spring, zinc die-cast (short), M10
thread. New—£3.
Anchor for fork spring, plated steel (short), M10 thread.
New—£3.
M10 top nut with shoulder for retaining chrome disc (later
models). New—£1.
M10 top nut knurled edge (no shoulder, earlier models).
New—£1.
Fork top chrome disc. New—£3.
Fork top rubber washer (for beneath chrome disc).
New—£2.
Mobylette AV89 / Raleigh RM5 / Phillips Gadabout Mk4 / Norman Lido Mk3 Leading link fork set service components.
1 × Top Anchor Rubber Bush (No.12)—£1.
Note: 1 × Rubber Bush per each
suspension band side assembly.
1 × Rivet Set [Contains
1 × MTJ140 Rivet (No.14),
1 × MTJ139 Stainless Steel Bush (No.13)
1 × MTJ140 Nylon Bush
(No.12)]—SOLD OUT
Note: 1 × Rivet Set per each suspension
band side assembly.
MTJ141 Metalastic Pivot Bush (No.15) for leading-link
swing-arm—£8 each.
Note: 2 bushes per arm assembly.
Mobylette/Raleigh rear swing-arm metalastic
bush—£8 each.
10mm I/D × 22mm O/D
× 33mm IL × 30mm OL. Note: 2 bushes per
swing-arm assembly.
NVT/BSA Easy Rider front fork
seals—£10 pair.
Plain pattern mouldings, just use a tie wrap in place of the
cable guide loop.
A spot of contact adhesive may be required to
secure the moulding onto the top shroud.
Puch Maxi front fork bush—£2.50p each.
Split-bush with 2× bore pegs. 26.5mm
O/D × 23mm I/D × 30mm long.
New genuine Dell’orto carbs, jetted to suit any 2-stroke
motors up to 50cc.
SHA 14/9 P: RH short-lever engaged choke. (Restricted 9mm
intake suitable for cyclemotors.) Fits 18mm
manifold—Sold out.
SHA 14/12 H: cable operated choke shutter. (Standard 12mm
intake.) Fits 18mm manifold—£30.
SHA 14/12 L: RH long-lever engaged choke, c/w air filter
gauze. (Standard 12mm intake.) Fits 18mm
manifold—Sold out.
SHA 14/12 P: RH short-lever engaged choke. (Standard 12mm
intake.) Fits 18mm manifold—Sold out.
SHA 15/15: RH short-lever engaged choke. Fits 18mm
manifold. Bolt-on performance, 15mm big-bore—Sold
out.
‘BAP’ tap, off/on, with filter—£8.
¼" × ¼" Gas/BSP fitting
to tank and outlet.
‘Blade’ fuel tap c/w tank gauze filter. Push
on / Push off—£20 each.
⅛" Gas/BSP thread to tank. ¼" Gas/BSP thread
to outlet. Includes ¼" Gas/BSP Flange Nut to outlet
+ Union Fitting to solder in ¼" copper fuel line.
Note: ⅛" BSP (Gas) thread to tank
(nominally ⅜" O/D
× 28tpi), ¼" BSP (Gas) thread (nominally
½" O/D ×
19tpi).
‘Blade’ fuel tap c/w tank gauze filter. Push
on / Push off + reserve lever—SOLD OUT - More stock on
back order.
¼" Gas/BSP thread to tank. ¼" Gas/BSP thread
to outlet. Includes ¼" Gas/BSP Flange Nut to outlet
+ Union Fitting to solder in ¼" copper fuel line.
Note: ¼" Gas/BSP thread
spec—O/D nominal 0.500"
(½") x 19TPI.
‘Blade’ Push on / Push off fuel tap with spigot to
fit 6mm pipe—£25 each.
Machined from brass with copper gauze filter to tank.
Useful for limited space applications as main body of tap is only
1⅛" (28mm) long.
Note: ¼" BSP/Gas thread
spec—O/D nominal 0.500"
(½") × 19TPI.
In-line fuel tap, off/on, with 5mm unions, and fixing point with 6mm hole—£7.
In-line fuel tap, off/on, with 6mm unions, complete with two line clips—£9.
M10×1mm pitch RH thread
petrol tap—£14.
Off–on–reserve with gauze filter. 180 degree
outlet.
M10×1mm RH thread fuel
tap c/w
filter—£16.
Off–On–Res with
90-degree LH outlet.
Suit Mobylette M40, M50V, 51V models, etc.
M16×1mm RH/LH thread fuel tap
Off–On–Res c/w filter, 90-degree RH outlet—£12 each.
Suit some Puch MS, VS; early Norman Nippy models; etc.
Plunger type fuel tap, ⅛" BSP (Gas) thread to tank
(nominally ⅜"O/D × 28tpi), Ribbed
outlet for 5mm pipe—£35 each.
Typically suits BSA Bantam; Autocycle tanks: Raynal,
Excelsior; Mopeds: Norman Nippy Mark 2, 3 & 4, Lido, Hercules
Her-cu-motor, etc.
Plunger fuel tap c/w gauze filter. Pull on/push
off. 1/8" Gas/BSP thread to tank. 7/16" UNF thread to
outlet—£20 each.
Note: 1/8"Gas/BSP thread
spec—O/D nominal 0.375"
(3/8") x 28TPI. 7/16" UNF thread spec—O/D nominal 0.437" (7/16") x
14TPI
Plunger fuel tap with 90 degree outlet c/w gauze filter.
Pull on/push off—£25 each.
¼" Gas/BSP thread to tank c/w fitted 3/8" Gas/BSP
converter (this is easily removeable if you want to use as
¼" thread. 7/16" UNF thread to outlet.
Note: ¼" Gas/BSP thread
spec—O/D nominal 0.500"
(½") × 19TPI.
3/8" Gas/BSP thread spec—O/D nominal 0.625" (5/8") ×
19TPI.
7/16" UNF thread spec—O/D nominal 0.437" (7/16") ×
14TPI
Dual plunger fuel tap c/w gauze filter. Pull on/push
off. Reserve (hex head), pull on/push off. 1/4"
Gas/BSP thread to tank. 1/4" Gas/BSP thread to
outlet. Chrome plated finish—£20 each.
This is the fuel tap typically recommended to
fit Raleigh Runabout tank. Use in conjunction with 1/4" Gas
90 degree elbow fitting.
Note: you will need to remove the petrol tank to fit this
tap.
Dual plunger fuel tap c/w gauze filter. Pull on/push off. Pull on reserve/push off. 3/8" Gas/BSP thread to tank. 1/4" Gas/BSP thread to outlet. Chrome plated finish. £20 each.
Note: 1/4" Gas/BSP thread spec—O/D nominal 0.500" (1/2") x 19TPI. 3/8" Gas/BSP thread spec—O/D nominal 0.625" (5/8") x 19TPI
Honda Graduate/Amigo type petrol tap, off/on/reserve, 12 × 1mm pitch LH/RH thread, with filter & 180 degree outlet—£12 each.
Mobylette old-type push-on/pull-off petrol tap kit.
New—£18.
Tap c/w banjo bolt, filter, & fibre washer seals.
Puch Maxi type petrol tap, off/on/reserve, 12 × 1mm pitch LH/RH thread with filter & 90 degree outlet. £10 each.
Raleigh Wisp Karco petrol tap components:
Securing clip MTH244 (locks the tap body into the
tank)—£4.
Tap lever extension MTH243 (‘key’ which turns fuel
off/on)—SOLD OUT.
Spring clip for tap key (clips into barrel boss and secures key
in place)—New £1 each.
Belville spring for tap barrel (inside tap to put pressure onto
the seal, and acts as rotary stop)—New—£1
each.
O-ring—SOLD OUT.
Karco fuel tap: 17mm diameter cork
seal—£4 each.
Fits serviceable types of Karco and Karcoma
fuel taps with 17mm diameter cork seal as fitted to Raleigh
Runabout RM6, RM8, RM9, RM9+1, and LOTS of other makes of moped;
early Phillips Gadabout models, NSU Quickly, Zündapp, lots
of Continental makes.
Fitting: Oil prior to assembly and press into housing. The
cork will need compressing slightly to get the gland ring threads
to engage, then screw up to level with the edge of the
body.
These seals are correct 5mm thickness. (Thinner rubber
seals that are sold elsewhere on the internet don’t work in
Karco taps).
7/16" UNF Elbow, fitting for 1/4"
pipe—£5.50 each.
7/16" UNF Nut: £1.50 each.
7/16" UNF Straight Spigot, fitting for 3/16" / 5mm
pipe—£1.70 each.
7/16" UNF Straight Spigot, fitting for 1/4"
pipe—£1.70 each.
Note: 7/16" UNF thread
spec—O/D nominal 0.437"
(7/16") x 14TPI.
¼" Gas/BSP Elbow, fitting for ¼"
pipe—£5.50 each.
¼" Gas/BSP Nut: £1.50 each.
¼" Gas/BSP Straight Spigot, fitting for ¼"
pipe—£1.70 each.
Note: ¼" Gas/BSP thread
spec—O/D nominal 0.500"
(½") x 19TPI.
Petrol pipe T-piece—£5 each.
6mm spigot diameter, chrome plated finish.
Fuel Line—all correct petrol resistant materials.
Typical ‘light’ wall section for small bikes
Black Neoprene Rubber Pipe: 4mm bore × 8mm O/D @ £1.20p/ft.
Black Neoprene Rubber Special fuel line 4mm bore × 6.5mm
O/D @ £1.20p/ft.
This stretches to fit up to 6mm spigots, and
is super flexible while also being small diameter. Ideal for eg
Honda PC50 fuel line which needs to be threaded through the
frame. Also works for black breather pipes, etc.
Black Neoprene Rubber Pipe: 5mm bore × 10mm O/D @ £1.20p/ft.
Black Neoprene Rubber Pipe: 5.5mm bore (for 6mm unions) ×
10mm O/D—£1.20p/ft.
Clear Plastic Pipe: 5mm bore × 8mm O/D ‘Light’—80p/ft.
Clear Plastic Pipe: 5mm bore × 9mm O/D
‘Heavy-duty’—£1.00p/ft.
Clear Plastic Pipe: 6mm bore × 11.5mm O/D
‘Heavy-duty’—£1.00p/ft.
New petrol tap corks, barrel type (1-per)—50p each.
New petrol tap corks, blade type (2-per)—50p each.
OMG In-line filter.—£4 each.
Clear body so you can view filter, with plated metal ends.
Body 20mm diameter × 40mm long. Union spigots 6mm
diameter.
Back in stock by popular demand. Proper metal ends
mean these spigots don’t snap off like cheapo plastic
filters.
New 195 main jet for Gurtner carburettor—£2.
Variable main jets for Bing carburettors.
Short variable jet for Puch MS & VS fan-cooled models, VZ
sport, NSU Quickly and
Zündapp—£15 each.
Long variable main jet for Sachs
engines—£17 each.
Honda PC50 O-ring seal kit for Keihin
carburettor—£3.50p set of 2 seals.
Both seals made from petrol resistant nitrile
rubber. Comprises new O-ring seal for main jet—fit
seal into location groove in main jet, put a tiny wipe of oil
around O-ring, and push into carb body—and new O-ring seal
for float chamber—fit seal into location channel of
carburettor body, then re-fit float chamber to capture
seal.
Honda P50 motorwheel, float chamber O-ring seal for early type
carburettor—£2.50.
Seal made from petrol resistant nitrile
rubber. Fit seal into location channel of float chamber,
then re-fit float chamber to capture seal.
Note: only fits early type carburettor as shown in
picture—does not fit the later type carb.
Aluminium Air Filter housings. Carb fitting nominally
19mm / 3/4". Housing body nominally
63mm / 2 1/2" diameter. Total length
nominally 40mm / 1 5/8".
Plain Filter—£5 each.
Filter with Strangler—£7 each.
Honda PC50 air filter element—£4.
1. Trim the old filter from the plastic
carrier (the original filter is glued at the ends).
2. Tease the new element into position over the plastic
carrier.
3. Reseal the ends with adhesive if you prefer (but we
don’t feel this is really necessary).
Mesh Air Filters:
45mm diameter. New—£9 each.
50mm diameter (for 12/14mm Bing carb, Phillips Panda etc).
New—£9 each.
56mm diameter—Sold Out.
60mm diameter (for Bing carb 16mm+, etc).
New—£10 each.
Steel Air Filter small housings: carb fitting nominally 23.5mm
diameter, filter body 46mm diameter, 24mm total length.
Plain Filter—£5 each.
Filter with Strangler—£7 each.
Gurtner AR10/12/13 carb, spring wire clip to secure air filter box. New—£2 each.
Gurtner carburettor air filter housings for
Mobylette/Raleigh:
Inner air filter/intake box c/w fitted gauze for Gurtner AR12
carb type with curved manifold and 51V carb.
New—Sold Out
Gurtner AR12 and 51V carb types. Air Filter Housing for
curved manifold (Top right in picture).
New—£12.
Gurtner AR8, AR10, AR12, AR13 carb types. Air filter
housing (Top left in picture). New—£12.
Filter screen (bottom left in picture) for BA-series and
AR-series filter housing types. New—£4.
NOT curved manifold filter housing.
Gurtner BA-series carb repro fibreglass bare air filter
housing—£26.
Also fits early AR-series carb types with steel backplate.
For Gurtner carbs with phenolic moulded hard plastic filter types
fitted clips at top and bottom. Various Mobylette &
Raleigh RM4 and early RM6 models
Gurtner air filter gauze—£4 each.
Fits early AR-series carbs with steel backplate, BA-series and
late AR-series carbs. Various Mobylette & Raleigh RM4,
RM6, Wisp, RM8, RM9, RM9+1 models
Honda PC50 K1 air filter carrier to carburettor, NEW rubber
elbow connector—£12 each.
Honda moulded the original connector out of
PVC material, which while flexible when new, constantly releases
its moulding chemicals over time. This causes the moulding
to progressively shrink and go hard, until it no longer
fits. These NEW mouldings are made from natural rubber, so
they fit properly, are flexible, and won't shrink or go
hard.
2" Chrome Petrol Cap. Ceandess (British made) with vent & seal. For: Phillips Panda Mk1/Mk2, Phillips Gadabout P39/P45/P50, Hercules Her-Cu-Motor, Hercules Corvette and other applications—£19 each.
Continental pattern stainless steel fuel cap: cap diameter 53mm, neck location diameter 29mm, 2 × clips = 36mm diameter × 7mm wide—£7 each.
Continental pattern chrome-plated steel fuel cap: cap diameter 53mm, neck location diameter 29mm, 2 × clips = 36mm diameter × 7mm wide—Sold Out.
Continental pattern fuel cap, zinc & gold passivate finish: cap diameter 53mm, neck location diameter 29mm, 2 × clips = 36mm diameter × 7mm wide, Neoprene seal—£5 each.
Continental pattern stainless steel locking fuel cap.
53mm cap diameter, neck location 29mm, 2 clips = 7mm wide,
Neoprene seal—£9 each.
This size fits Honda Caminio, Novio,
Graduate, P50, PC50; lots of old type continental mopeds:
Rabenieck, Prior, Bown, Kieft, etc.
Continental pattern stainless steel ‘large’
locking fuel cap c/w 2 keys—£10.
Cap diameter 64mm, neck location diameter 35mm, 2 × clips =
46mm diameter × 8mm wide.
Continental pattern chrome plated steel ‘large’ fuel cap: cap diameter 64mm, neck location diameter 37mm, 2 × clips = 46mm diameter × 9mm wide—£10 each.
Continental pattern stainless steel ‘large’ fuel cap: cap diameter 64mm, neck location diameter 37mm, 2 × clips = 46mm diameter × 9mm wide—£9 each.
Raleigh Fuel Cap—£15.
Chrome finish, neoprene rubber cap seal.
Fits RM6 Runabout, Wisp, RM8, RM9, RM9+1,
RM11, RM12, Late model RM4; Norman Nippy Mk2 type-2, Nippy Mk3,
Nippy Mk4, Nippy Mk5; Phillips Panda Mk3.
(Does not fit the early type tanks with plain 'knock-in' cap
socket.)
New petrol cap seals, Cyclemaster, Power Pak—90p each.
New petrol cap seals, Runabout, Wisp, Mini-Motor, Norman Nippy & Lido etc—£1 each.
New petrol cap seals, Honda PC50 (may also fit other models) 48mm O/D × 32mm I/D × 2.5mm thick—£1 each.
Petrol Caps—Push-in types.
White Mobylette Push-in 30mm—£4.
Black Mobylette Push-in 30mm—£4.
Black HP branded Push-in 30mm—£3.
Black Unbranded Push-in 30mm—£3.
Petrol Caps—Push-in types.
Grey "HP oil 2%" Push-in 33mm—£4.
Black Unbranded Push-in 33mm—£4.
Petrol Caps—Push-in types—ALL TYPES SOLD
OUT
White
‘HP’ 40mm
White ‘Marque Modele TMC Deposes’ 40mm screw/push
Cream plain 40mm screw/push
Cream ‘Fuel Can’ pattern
Anker–Laura M-48
Batavus clutch centre seal 21–15–3, part no.
816180—£3 each.
Batavus clutch centre needle roller bearing
21–15–22—£8 each.
Anker–Laura M-48
Batavus, Ariel-3, SIM-50; Cylinder base
gasket—£2.
Anker–Laura M-48
Small-end bearing 14mm O/D
× 11.7mm I/D ×
11mm L—£7.
Note: requires drilling lubrication
hole and ream to 12mm after fitting.
Anker–Laura M-48
Original mag side 15–30–7 crankcase seal, no.
816181—£5 each.
Original clutch side 21–42–7 crankcase seal, no.
816480—Sold out.
Engine crank seal set—£12 set of two: 15-30-7
& 20-42-7.
Reed Valve Assembly, Part No 481783—£20 each. New stock
Anker-Laura M-48 Batavus/Ariel-3/SIM50 original air filter housing—£20 each. New stock
Anker-Laura M-48 Encarwi carburettor repro fibreglass moulded
air filter housings.
Batavus, Berini, etc for 50mm diameter air filter gauze Encarwi
carburettors—£16 each.
Ariel 3, SIM50 for 52mm diameter air filter gauze for
Encarwi S22 carburettors—£16 each.
Check the diameter of your air filter
gauze and/or internal diameter of the gauze location in the back
of the carb.
Encarwi retaining clip for air filter
housing—£4
Fits 50mm & 52mm carburettor types for Ariel 3, SIM50,
Batavus, Berini, etc.
Batavus Anker–Laura M-48 clutch locking lever 41-245-07 c/w screw—£9 each. New stock
Batavus Anker–Laura M-48 exhaust parts.
Silencer end piece (perfect chrome)—£16.
Silencer clamp (bright zinc plated and
passivate)—£4.
Silencer internal baffle—£4.
All new stock
Batavus Stand Spring. Part No 44-405. GoGo, HS50, etc—£4.
Batavus Anker–Laura
Rear wheel adjusters—£2 each.
M10 × 1mm pitch half and full nuts for front axle—50p
each.
M11 × 1mm pitch full nuts for rear axle—£1
each.
New stock
Anker–Laura engine top end high-tensile
studs–£1.50p each.
New stock
Batavus GoGo, HS50, etc, sintered iron pedal shaft
bushes—£15 pair.
New stock
Batavus GoGo, HS50, etc, pedal shaft, 16mm dia × 162mm
long—£10.
New stock
Batavus GoGo, HS50, Bronco, etc; Anker-Laura M-48 Special
needle roller bearing for belt flywheel—£10 each.
16mm I/D × 22mm
O/D × 14mm long with
seal one end.
Carburettor Shield part no.481786—£5
Clutch disc no. 480889: Batavus, Ariel 3, SIM 50, etc—Sold Out.
Clutch Cage and Front Drive Pulley
Assembly—New—£10
Note—without bearings. Anker-Laura, Ariel3,
SIM50.
Clutch Cage and Front Drive Pulley Assembly (complete with
needle bearing set)—New: £20
Anker-Laura, Ariel 3, SIM50.
Clutch Clamping Plate No. 480890—New: £2
Anker-Laura, Batavus Go Go, Pronto, Bronco, etc
Clutch Pressure End Plate (steel) No.
480882—New—£5
Anker-Laura, Batavus Go Go, Pronto, Bronco, etc.
Clutch plate (steel) No. 480888—New: £5.
Anker-Laura, Batavus Go Go, Pronto, Bronco, etc.
Clutch Spring/ball bearing assembly part no. 549886—£7
Crankcase Gasket—£2
Encarwi Carburettor Parts: New stock.
New float No. 481736—£10
New bare float chamber top—£3
New float chamber top c/w gasket No. 481738—£4
New airslide spring No. 481722—£2
New return spring for choke shutter No. 481744—£2
New plastic fuel banjo No. 481740—£3
New cast zinc fuel banjo No. 481740—£5
New fuel banjo bolt (aluminium) bare bolt No.
481742—£2
New fuel banjo bolt (aluminium) bolt c/w fitted
filter—£4
New E50 main jet for 8mm carb—£3
New brass jet holder No. 481741—£2
New carburettor top cable adjuster with
locknut—£3
New body clamp screw—£1.
Gudgeon Pin 12mm diameter × 33mm long, Genuine/original part no.480501—£3 each.
Inlet manifold & reed valve gasket (2-pack)—£1.50p for pair.
Mag/Clutch plastic moulded covers for Anker Laura / Batavus (black only)—New—£10 each.
Batavus GoGo, Prius, Pronto, Batavette, HS50, Bronco,
etc. 55mm decals for mag/clutch
covers—£20 pair + postage.
Colours can be changed or customised if required.
Contact Neil at Walton Works Graphics
Tel: 01394-670704 or Mobile: 07411-978175
E-mail:
Anker Laura / Batavus Drive pulley and clutch housing + needle bearings and seal. £15 each.
Batavus GoGo, HS50, etc (Anker-Laura M-48 models). New stock: Front brakeplate assy—£5.
Ariel Colt LH 200cc OHV, 1954 on, Britax engine gasket set (including cylinder head gasket)—£10 set.
BSA A7 Twin, 500cc OHV 1947/1950, Britax de-coke gasket set—£5 set.
BSA 350/500cc OHV 1946-on B32/B34 Competition, 1946-57 B31/B33, Halls engine gasket set (inc. pushrod tube seal)—£10 set.
BSA B33, B34 500cc OHV 1948/195-, Britax de-coke gasket set (including cylinder head gasket)—£10 set.
BSA B33, B34 (Alloy head and barrel types) 500cc OHV 1950/55, Britax de-coke gasket set (including cylinder head gasket)—£10 set.
BSA C10L 250cc SV, 1954 on., Britax engine gasket set (including cylinder head gasket)—£10 set.
BSA C11 250cc OHV, 1955 on, Britax engine gasket set (including cylinder head gasket)—£10 set.
BSA Gold Star 350cc OHV, 1953/195-, Britax de-coke gasket set (including cylinder head gasket)—£10 set.
Douglas Vespa 152.L2 Scooter 125cc 1959/-, Britax engine gasket set—£5 set.
Douglas Vespa 125cc GL.2, 42-L2 & 92L2 Scooters 1955-59, Cumberland de-carb gasket set (comprising cylinder head & base gaskets)—£5 set.
Douglas Vespa 150cc Gran Sport, 1955-59, Cumberland de-carb gasket set (including cylinder head & manifold gaskets)—£10 set.
Douglas Vespa 150cc TS GL Touring-Clubman, 1958-on, Cumberland de-carb gasket set (including cylinder head & manifold gaskets)—£10 set.
Douglas Vespa 160cc TS GS 160, 1962-on, Cumberland engine gasket set—£5 set.
Honda Camino, full engine gasket set—£8.
HMW N50, Full Engine Gasket Set—£12 each.
Head, Barrel, Crankcase, Clutch, Exhaust Manifold. RAI
genuine original manufactured.
Lambretta Centro 100, 98cc 1965/-, (including cylinder head & exhaust manifold gaskets)—£10 set.
Lambretta Li125, Britax de-coke gasket set (including cylinder head & exhaust manifold gaskets)—£10 set.
Lambretta Li150, Britax de-coke gasket set (including cylinder head & exhaust manifold gaskets)—£10 set.
Lambretta 150cc T/S Model Li, 1959-63, Cumberland de-carb gasket set (including cylinder head & manifold gaskets)—£10 set.
Mobylette (early type) ‘Slimline’ Inlet Manifold Gasket. New—£1.
Mobylette 51V crankcase gasket for V10 reed-valve engine—£1 each.
Mobylette Cady, X1, M3 engine gaskets:
Cylinder Head (aluminium)—£3.
Cylinder base—£1.
Crankcase—£1.
Inlet/Exhaust
manifold—SOLD OUT
Exhaust manifold—£3.
Mobylette/Raleigh crankcase gasket—£1 each.
Mobylette/Raleigh aluminium cylinder head gasket—£3.
Mobylette/Raleigh Gurtner carburettor
‘figure 8’ gasket for float chamber
top—80p each.
Big hole 24.7mm / small hole 11.7mm.
Fits AR8, AR10, AR12, AR13 series carbs. Also some of
earlier BA-series carbs (check hole sizes are
compatible).
Mobylette/Raleigh Gurtner carburettor
‘figure 8’ BA-series gasket for float chamber
top—80p each.
Big hole 23mm / small hole 12mm. Fits
BA8, BA10, BR type carbs. Also fits the Gurtner D-series,
D8, D10, D12, etc, just snip off the small hole part of the
gasket and use the complete large circle. Gurtner D-series
carbs used on VAP, Lavalette, Paloma, Hercules Corvette,
Cazaneve, Automoto, and lots of other obscure French
mopeds.
Gurtner AR12/AR13 carburettor, float chamber top
O-ring—£1 each.
O-ring 22mm bore × 1.75mm section fits
on float chamber top of some AR12 models (curved manifold), AR13
and some other Gurtner carb types with O-ring recess in the float
chamber top.
Mobylette/Raleigh inlet manifold gasket—£2 each.
Peugeot F-104 engine gasket set—£8.
Crankcase, cylinder base, cylinder head, reed-valve/inlet,
exhaust manifold ring gasket + a couple of others.
Puch Maxi (kick-start type), full engine gasket
set—£7.
Also suits Tomos top end set only.
Raleigh RM1/RM2, Sturmey-Archer engine, new cylinder head gasket—£3 each.
Royal Enfield Bullet & JS, 500cc OHV 1954 on, Britax de-coke gasket set (including cylinder head gasket)—£10 set.
Royal Enfield Clipper & S2, 250cc OHV, 1953 on, Britax de-coke gasket set (including cylinder head gasket)—£10 set.
Royal Enfield Twin, 500cc 1949/195- & 1937/1939, Britax de-coke gasket set (including cylinder head gasket)—£10 set.
Victoria M50 moped, full engine gasket set—£8 set.
Villiers 4F engine gasket set (Halls): Cyl head, base, cases, exhaust, etc—£5 set.
Villiers Model 31C, 2L, 150cc, 1956/-, Britax de-coke gasket set (including cylinder head & manifold gaskets)—£8 set.
Villiers Model 31C, 2L, 150cc, 1956/-, Britax full engine gasket set (including cylinder head & manifold gaskets)—£10 set.
Curly ‘Bugle’ bulb hooter—Sold Out.
‘Straight’ bulb hooter (9")—£5.
‘Curve’ bulb hooter (7")—£4.
45mph VDO speedometer with illumination port. Black/pale gold dial. New—£40 each (limited stock).
60mph VDO speedometer—£50.
Black dial. 60mm diameter casing with 65mm bezel.
Illumination socket in back with bulb holder for BA9S bulb.
60mph Veglia Speedometer, New/Old stock, case diameter 52mm, head diameter 57mm—£20 each.
Huret ‘triangular’ speedo blanking
plate—£6.
Grey plastic moulding c/w clamping strip and screw-thimble on
back.
Lucia (Made in Holland) speedo blanking plate. To fit 48mm round socket. Head shape roughly 53.5mm square Plastic moulded. NEW/old stock—£6.
Mobylette M40/50V/51V/AV89 etc. Speedo blanking
plates.
‘Mobylette’ white plastic moulded.
New—£6. ‘Mobylette’ square-pattern
pressed alloy. New—£6.
Mobylette M40/50V/51V/AV89 etc. Speedo blanking
plates.
‘Mobylette’ pressed alloy.
New—£6.
‘Luxor’ white plastic moulded.
New—£6.
Honda PC50. Tag Washer for speedo drive
gear—SOLD OUT, We're hoping to be machining another
batch soon.
Note: This is the ‘fuse’
component between the front hub and the speedo drive that is
invariably responsible for speedometer failure.
Honda PA50 Camino speedo cable—£10.
68cm black sheath. Ferrules M10 × 1mm pitch with 2mm
drive square ends.
Honda speedometer cables
Black sheath 89cm long—£10.
Suit Honda PC50 and Honda NS50 Melody.
Grey sheath 80cm long—£10.
Suit Honda NC50 Express
(and will fit PC50, but note the cable is 9cm
shorter than recommended black cable.)
Tomos Speedometer cable, 76cm long, black
sheath—£10.
Top (speedo head) fitting M10 × 1mm pitch. Inner
cable at head end 1.8mm square. Drive fitting M11 ×
0.75mm pitch. Inner cable at drive end 2.2mm square.
Speedo cables:
Speedo Make | Length | Colour | Price | Notes |
---|---|---|---|---|
CEV | 725mm | grey | £10 | |
CEV | 1 metre | grey | £10 | (Capri 70, 125, 150) |
Huret speedometer cables 10mm × 1mm threads with 2.5m square cable drive. | ||||
Huret | 550mm | black | £15 | |
Huret | 650mm | black | £16 | |
Huret | 850mm | black | £18 | |
Huret ‘Special’ | 850mm | black | £20 | With removable bottom end fitting for assembly through leading-link fork. Early Mobylette AV89, Raleigh RM5, Norman Lido Mk3, Phillips Gadabout Mk4. |
Rolle Milano Orsetto | 1050mm | grey | £12 | |
VDO | 375mm | black | £8 | |
VDO | 450mm | black | £8 | |
VDO | 590mm | grey | £8 | |
VDO | 600mm | black | £8 | |
VDO | 600mm | grey | £8 | |
VDO | 600mm | white | £8 | |
VDO | 650mm | black | £10 | |
VDO | 700mm | black | £10 | |
VDO | 720mm | black | £10 | |
VDO | 750mm | black | £10 | |
VDO | 800mm | black | £12 | |
VDO | 850mm | black | £12 | |
VDO | 900mm | grey | £12 | |
VDO | 950mm | black | £12 | |
Veglia | 540mm | black | SOLD OUT | |
Veglia | 570mm | grey | SOLD OUT | |
Veglia | 685mm | grey | SOLD OUT | |
Veglia | 840mm | black | £10 |
Speedo Drives:
Make | Type | Price | |
---|---|---|---|
CEV | 179 | 15mm spindle bore/3-leg drive | £15. |
CEV | 303 | £10. | |
CEV | 341 | 11mm spindle bore/1-leg drive with boss | £10. |
CEV | 380 | 11mm spindle bore/1-leg drive with boss | £10. |
CEV | 408 | £10. | |
CEV | 417 | 12mm spindle bore/1-leg drive | £10. |
CEV | 440 | 11mm spindle bore/1-leg drive | £10. |
CEV | 443 | 12mm spindle bore/1-leg drive | £10. |
CEV | 487 | 12mm spindle bore/1-leg drive | £10. |
CEV | 704 | 12mm spindle bore/1-leg drive | £10 (re-con). |
CEV | 6.6 907 | 1.5 ratio | £10. |
EIE | 21-10 07.94 | 12mm spindle bore/1-leg drive £10 | £10. (re-con) |
Make | Rim/tyre | Ratio | Price |
Huret | 20" | 1.6 | £10. |
Huret | 16/21 | 1.7 | £10. |
Huret | 17/22 | 1.7 | £10. |
Huret | 19/23 | 1.8 | £10. |
Huret | 26" | 2.0 | £10. |
Huret | 27/28" | 2.2 | £10. |
Make | Type | Price | |
Lucia | 11mm spindle bore/leg drive ‘black’ | £10 | |
Lucia | 11mm spindle bore/hub drive ‘black’ | £10 | |
Lucia | 11mm spindle bore/hub drive ‘white’ | £10 | |
Lucia | 12mm spindle bore/hub drive (marked 19) ‘silver/grey’ | £10. | |
Lucia | 12mm spindle bore ‘white’ 32-24-61 | £10. | |
Lucia | 16mm spindle bore ‘black’ (used) | £3. | |
Lucia | 16mm spindle bore ‘white’ | £10. | |
Smiths | BG 5338/121 | ratio 18:10 | £15. |
SWF | 23V LH/RH | 2-ended drive | £10. |
Make | Wheel size/side | Ratio | Price |
VDO | 16RH/16LH | 32/1—1.84 | £10. |
VDO | 17RH/17LH | 32/3—3.84 | £10. |
VDO | 21RH | 6/67 | £10. |
VDO | 21RV | 22/1 | £10. |
VDO | 21RV | 23/1 | £10. |
VDO | 22LH | 7/22 | £10. |
VDO | 4/22RV | £10. | |
VDO | 23RH | 13/2 | £10. |
VDO | 23LH | 23/5 | £10. |
VDO | 23LH | 25/2 | £10 (recon.) |
VDO | 26LH | 12/1 | £5 (recon.) |
VDO | 26RH | 7/25 hub drive | £10 (recon) |
Graiser/Veglia | 536D B8 | £10. | |
Veglia | 50-1250 4G | £10. | |
Veglia | 50-4244 4G | 18/30 | £10. |
Veglia | Motor cycle drive with 19mm spindle bore | £10. |
Notes:
New chrome plated steel handlebars.
These are correct cycle/moped type 7/8"
diameter handlebars, with 1" diameter splined ‘swell’
in the centre so they grip securely in the stem clamp. For
matching with 1" bore cycle/moped stem so you can thread the
curved forms on the handlebar through the clamp.
Traditional ‘North Road’ pattern handlebar (top on
illustration), typical old bicycle/autocycle, 22" wide with 7"
‘pullback’—£10.
‘All Rounder’ pattern handlebar (bottom on
illustration), typical modern cycle/moped , 22½" wide with
3" ‘pullback’—£10.
Chrome plated handlebar stem
9½"/240mm. New—£9 each.
7"/180mm. New—£8 each.
Stem tube 7/8"/22mm. Bar clamping to 1"
diameter, so you need to use ‘cycle type’ handlebars
with centre section ‘swollen’ to 1" diameter.
Note: these are cycle/moped stems, and NOT designed to clamp
motorcycle handlebars with constant 7/8" diameter
tube.
‘Classic’ pattern moped handlegrips 4"/100mm long
(black)—£4 pair.
Classic pattern grip is very similar style to
typical Mobylette, Amal, Magura, and Dare pattern grips.
Normally supplied as 1 × 7/8" grip for left
handlebar + 1 × 1" grip for throttle. If
you have a machine with twist change gear shift on the left bar,
then you’ll need a 2 × 1" grips combination
instead. Same price. These are correct moped length
‘short’ grips; motorcycle grips are typically 5"
long, so you end up with 1" of ‘baggy end’ if you try
putting those on a moped.
‘Radial rib’ pattern moped handlegrips 4"/100mm
long (black)—£3 pair.
Radial rib pattern gives comfortable
‘palm’ form and minimises transmitted handlebar
vibration. Normally supplied as 1 × 7/8"
grip for left handlebar + 1 × 1" grip for
throttle. If you have a machine with twist change gear
shift on the left bar, then you’ll need a
2 × 1" grips combination instead. Same
price. These are correct moped length ‘short’
grips; motorcycle grips are typically 5" long, so you end up with
1" of ‘baggy end’ if you try putting those on a
moped.
Handlegrips, 5"/125mm long black rubber ‘palm’
style, 7/8" I/D autocycle
grips. Sidewall minimum 4mm, up to 7mm thickness in palm
section. A nice chunky old type firm rubber grip.
Good quality—£4 pair.
Handlegrips, 4½"/113mm long black rubber
‘palm’ style, 7/8" I/D autocycle grips. Sidewall
minimum 4mm, up to 7mm thickness in palm section. A nice
chunky old type firm rubber grip. Good
quality—£4 pair.
2 × 7/8" bore grips, typically suitable
for old style autocycles, light motor cycles, and classic
motorcycles with lever throttle arrangement where both grips are
7/8"/22mm handlebar size.
Magura pattern handlegrips. Colours:Cream & Light
Grey—£8 pair.
4" long (short grips for moped). 7/8" handlebar & 1"
throttle twistgrip.
Heavy-duty Amal pattern Clutch ‘griplock’ levers. Typically for single-speed machines: autocycle, cyclemotor, moped clutch with latch lever. New. Commercial chrome plated finish. £32 each.
Cycle pattern brake levers. Chromed steel with ball-end
levers—£6 pair (LH & RH).
Compatible with: Raleigh Runabout RM6, RM8,
RM9, RM10; Raleigh Supermatic RM5; Raleigh Super Tourist RM11,
Super 50 RM12; Raleigh Wisp; Phillips Panda Mk3; Phillips
Gadabout Mk4; Norman Nippy Mk5; Norman Lido Mk3 and other typical
automatic mopeds.
Cast aluminium Clutchlock/Decompressor/Choke handlebar
lever—£7.
Ball-end trigger. Fits 7/8" handlebar.
Decompressor lever, ball-end, cast brass & chromed, standard 7/8" bar fitting—£13 each.
Decompressor lever, blade end, cast brass & chromed, standard 7/8" bar fitting—£15 each.
Genuine Magura Clutchlock/Decompressor/Choke handlebar
lever—£10.
Cast zinc bracket & plastic lever c/w cable clamp. Fits 7/8"
handlebar.
Cream plastic Clutchlock/Decompressor/Choke handlebar
lever—£3.
Ball-end trigger. Fits 7/8" handlebar.
Red plastic Clutchlock/Decompressor/Choke handlebar
lever—£3.
Ball-end trigger. Fits 7/8" handlebar.
Honda P50/PC50 new alloy brake levers c/w fitted pivot
bush—£10 pair.
Genuine NEW Honda brake lever sets, LH and RH. Cast alloy.
Tradiional old British pattern ‘blade-end’ control
levers LH &
RH—£10 each.
Good bright chrome plated finish. LH clutch/brake lever - cable slot down.
RH brake lever - cable slot
down. Lever set 6½" long. For 7/8" diameter
handlebar fitting.
Chrome plated RH Rotary
control levers for throttle, choke, decompressor, mag, air,
etc.
Blade-end (left)—£12 each,
Ball-end (right)—£12 each,
For 7/8" handlebar clamping.
Saker LH Clutch/brake lever. Chrome plated and die-cast zinc. £10 each.
Mobylette Brake levers.
‘Long’ chrome plated ball-end
levers—£12 each. (Not handed, same lever
fits both sides)
‘Standard’ length chrome plated ball-end
levers—£12 each. (Not handed, same lever
fits both sides)
Mobylette Brake levers.
‘Standard’ length chrome plated blade-end
levers—£12 each. (Not handed, same lever
fits both sides)
‘Standard’ length Alloy blade-end
levers—£12 each. (Left and Right
handed)
Mobylette 51V type ‘dogleg’ ball-end brake
levers—£10 each.
New, steel levers with chrome plated finish. Same lever
type fits both right and left sides.
Magura lever pivot bolt sets: Plated slot-headed screw, nut
and washer sets:
Long body for late type clutch lever—£2.
6mm diameter body × 14.5mm long and M5
thread. Total length 26.5mm.
Short body for front/rear brake levers and early type clutch
levers—£2.
6mm diameter body × 9mm long and M5
thread. Total length 21.5mm.
Mobylette—brake lever M5 pivot bolt sets:
Early type with slotted-head for alloy brake lever. Screw,
nut & shakeproof washer set—£2.00p
Later type M-series, etc, with plain dome head and under tag, for
chrome plated steel brake lever. Bolt and clinch nut
set—£2.00.
Amal griplock chrome clutch lever. Typically fitted to
Phillips Panda Mk1/2, etc. V616.
New—£15.
Moby brake lever. New chrome—£5.
Moby brake lever. New chrome (ball-end)—£5.
Moby brake lever. New black (ball-end)—£5.
Moby brake levers, LH &
RH. New alloy—£8.
Genuine Magura alloy clutch lever. (2 × alloy
lock-tabs). New—£12.
Genuine Magura alloy clutch lever. (1 × steel
lock-tab). New—£12.
Magura brake levers, LH &
RH. New alloy—£10.
Magura Pattern alloy clutch lever. (2 × alloy
lock-tabs). New—£10.
Magura pattern clutch lever (with pivot bolt). New
alloy—£12.
Tomos A3 brake lever. New black
(ball-end)—£3.
CiTe brake lever. New chrome—£5.
Honda NC50 Express front brake lever. New
alloy—£5.
Honda NC50 Express front brake lever. New alloy with black
ball-end—£5.
Amal brake lever. New chrome—£10.
Amal throttle twistgrip set. New chrome, with cream
grip—£25.
Amal throttle twistgrip set c/w new chrome brake lever + cream
grip—£25.
Amal throttle twistgrip set c/w new chrome brake lever + grey
grip—£25.
Amal throttle twistgrip set c/w new chrome brake lever + black
grip—£25.
Saker chrome throttle/decomp body casting c/w chrome brake
lever. New—£10.
Raleigh pattern brake lever. New chrome—£8.
Raleigh pattern lever/bracket assy (RH) complete. New
chrome—£15.
Raleigh pattern bracket (RH) bare. New
chrome—£5.
Moby throttle body castings—selection.
New—£4. Used—£2.
Moby throttle twistgrip tubes—selection.
New—£2. Used—£1.
Mobylette Cady M1, NEW control parts:
Bare throttle body casting—£8,
Throttle body casting with fitted brake/throttle release
bracket—£12,
Bare throttle release bracket—£3,
Throttle cursor—£4,
Cable clampbolt for throttle cursor—£1,
Twistgrip tube—£6,
LH lever bracket
casting—£8.
Also available:
LH&RH Brake levers in alloy and chrome
steel—£12 each,
Pivot bolt sets for brake levers (bolt +
locknut)—£2,
Special grubscrew for twistgrip tube—£1,
Cable adjuster & lock thimble—£3.
Moby throttle cursor, and decompressor slides. Selection of sizes and styles. £4 each.
Domino (Italian) throttle
cursors—£4 each.
18mm long × 8.5mm wide × 7.5mm deep c/w cable clamp
screw.
Raleigh RM1, RM2 cables: brake and clutch.
Excelsior Autocycle Sprite S1/Goblin G2 Decompressor valve
actuating lever c/w cable adjuster—SOLD OUT, machining
more stock.
Note: The Excelsior decompressor
valves are notoriously prone to losing their operating levers,
then you can’t work them anymore. Villiers
decompressor valves don’t fit. This actuating lever
fits straight into the original Excelsior decompressor valve body
and restores it to practical operation.
You do need your own decompressor valve body. This is
not included with the lever kit.
Old type Mobylette (up to late ’60s) Choke Thumb-Trigger
c/w cable clamp screw, washer & locknut—New £3
each.
Old-type Mobylette Special Shouldered Pivot Bolt for choke
trigger. New/old stock in original plated
finish—£1 each.
Mobylette Cady Decompressor Valve Kit, 19096—£8
each.
Comprises: new valve, spring, cable anchor
plate, valve head plate & locknut.
Mobylette/Raleigh Decompressor Valve
Kit—£8 each.
Comprises: new valve, guide (with seal),
spring, cable anchor, top clip and split pin.
No.0 size inner cable wire 1.20mm × 2.3metre
long—£1.
C/w diecast zinc in-line barrel nipple 4.5mm
dia × 4.5mm long on one end (just clip it off if you
don’t want to use it). Galvanised fully solderable
wire (you can’t solder fittings onto stainless wire).
Direct applications for Moby/Raleigh—Gurtner/Encarwi carbs
as choke cable. Fits both 0 & 1 size outer
sheath.
Cable Components:
No.1 size inner cable wire 1.5mm diameter × 1.8metre
long—£1.
C/w diecast zinc barrel nipple 7mm dia
× 6mm long on one end (just clip it off if you don’t
want to use it). Galvanised fully solderable wire (you
can’t solder fittings onto stainless wire).
No.1 size BLACK outer sheath with nylon inner liner, 5mm
diameter—£1 per metre.
No.1 size WHITE outer sheath (smooth). Unlined, 5mm
diameter—£2 per metre.
No.1 size chrome plated cable ferrules to fit 5mm diameter
sheath—pack of 20 for £2.
You can fix these on with just a couple of
dot-punch taps, or some people prefer to glue them
on—either works.
New Tiger-wire No.1 size inner cable wire 1.5mm diameter
× 1.8metre long—£1.70.
C/w 2 different types of diecast zinc nipples
each end (just clip either off if you don’t want to use
it). Bell nipple on one end, Barrel nipple 7mm dia x 6mm
long other end. The pre-fitted Bell nipple fitting is
directly compatible with many continental brake cable
applications (Mobylette, etc), so just clip off the barrel nipple
and slide straight in as new brake wire. Galvanised fully
solderable wire (you can’t solder fittings onto stainless
wire).
No.1 cable sheath & inner wire set—just
£2.
Comprises: 1.4 metre length × No.1
nylon-lined BLACK outer sheath 4.6mm diameter, c/w crimp fitted
chrome plated ferrules 5.3mm diameter at both ends. C/w 1.8
metre length of No.1 size inner cable wire 1.5mm diameter c/w
diecast zinc barrel nipple 7mm dia × 6mm long on one end
(just clip it off if you don’t want to use it).
Sealed end at tail of inner wire, so it won’t fray.
Galvanised fully solderable wire (you can’t solder fittings
onto stainless wire).
No.2/No.1 size step-down ferrule—50p each.
Cable cup 6.05mm, step-down location diameter 4.4mm, through bore
size 2.75mm. Total length 12mm. Chrome plated
finish.
Locates straight on to No.2 size 6mm cable
sheath (moped brake cable size). You can fix these on with
just a couple of dot-punch taps, or some people prefer to glue
them on—either works. Also accepts No.1 size 5mm
cable sheath with standard ferrule fitted. These step-down
ferrules are typically used to locate the brake cables on Raleigh
type cycle/moped levers and to locate the decompressor cable into
the decompressor spring on Mobylette/Raleigh cylinder heads, some
cyclemotor throttle decompressor controls, some autocycle cables,
and many other applications.
No.2/No.1 size step-down ferrule—50p each.
Cable cup 5.80mm, step-down location diameter 4.2mm, through bore
size 2.50mm. Total length 12.4mm. Machined
aluminium.
Locates firmly straight on to No.2 size 6mm
cable sheath (moped brake cable size), and you don’t need
to use a No.2 ferrule (this step-down replaces it to fit straight
on the sheath). Also accepts No.1 size 5mm cable sheath
with standard ferrule fitted. These step-down ferrules are
typically used to locate the brake cables on Raleigh type
cycle/moped levers and to locate the decompressor cable into the
decompressor spring on Mobylette/Raleigh cylinder heads, some
cyclemotor throttle decompressor controls, some autocycle cables,
and many other applications.
No.2 Heavy-Duty Cable Components (normally used for brake
cables).
No.2 size inner wire 2.0mm—£1 per metre.
Galvanised fully solderable wire (you
can’t solder fittings to stainless wire).
No.2 size BLACK outer sheath with nylon liner 6mm
diameter—£2 per metre.
The nylon liner in this sheath gives
especially light and effective cable action.
No.2 size chrome plated cable ferrules to fit 6mm diameter
sheath—pack of 10 for £2.
You can fix these on with just a couple of
dot-punch taps, or some people prefer to glue them
on—either works.
Note—outside diameter of ferrule is 6.9mm, so
requires minimum 7mm diameter cable cup to fit. Many moped
cable cups and adjuster cups are smaller diameter than this, so
may need opening out to suit a No.2 ferrule.
Tip—Use No.1 ferrules instead. We generally
prefer to trim a small piece of sleeve off the end of the outer
sheath, then resin bond/araldite No.1 ferrules instead onto the
cable outer coil, then they fit straight into all the standard
cable cups.
Extra-long ‘Tandem gear cable’ No.0 size inner
cable wire 1.25mm × 2.7metre long (10ft
6in)—£2.
C/w diecast zinc in-line barrel nipple 4mm
dia × 4.5mm long on one end (just clip it off if you
don’t want to use it). Galvanised fully solderable
wire (you can’t solder fittings onto stainless wire).
Direct applications for Cyclemaster & BSA Winged Wheel
throttle cables, Ariel 3 throttle and choke cables,
etc. Fits both 0 & 1 size outer sheath.
Extra-long ‘Tandem brake’ No.1 size inner cable
wire 1.5mm diameter × 1.8metre long
(70")—£2.
C/w 2 different types of diecast zinc nipples
each end (just clip either off if you don’t want to use
it). Bell nipple on one end, Barrel nipple
7mm dia × 6mm long other end. This
inner wire is particularly suitable for extra-long applications,
eg: Cyclemaster clutch cable, Ariel 3 rear brake, etc.
Galvanised fully solderable wire (you can’t solder fittings
onto stainless wire).
Cable End Trims—12 for £1.
Aluminium ... won’t rust. Resolves the problem of
fraying ends on cut cables. Just crimp on lightly with
pliers.
Cable (solder) Nipples Selection Pack
no.2—45 pieces/13 types for £12.50.
5 × EE7 carb 3mmØ×3mm L tube, 5 ×
BA5 small ball 5mmØ,
5 × BA6 large ball 6mmØ, 3 × BN35 barrel
3mmØ × 5mm L,
3 × BN6 barrel 3/16"Ø × 3/16" L, 3 ×
BN575 barrel 5mmØ ×
7.5mm L, 3 × BN642 barrel 6mmØ × 4.2mm L, 3 ×
BN608 barrel 6mmØ ×
8L, 3 × BN610 barrel 6mmØ × 10mm L, 2 ×
BN49 barrel 8mmØ ×
8mm L, 2 × BN813L barrel 8mmØ × 13mm L, 2 ×
1010L barrel 10mmØ ×
10mm L, 2 × TN24A short trumpet
¼"Ø, 4 ×
TN24 standard trumpet 6mmØ,
2 × TN17 large trumpet 8mmØ
Magura Hymec special slotted barrel nipple for brake/clutch
levers—£3.
Machined brass with bright Nickel plated
finsh. 8mm diameter body / 10mm diameter head / 15mm
long. Fits Magura and Domino levers.
Screw-clamp cable nipples (solderless fitting).
Screw-clamp in-line ‘Trumpet’ nipple (in brass
finish)—£1 each.
7mm diameter body × 4.25mm diameter
spigot × 12.5mm long.
Large screw-clamp ‘Barrel’ nipple (in plated
finish)—2 for £2.
6mm diameter body × 8mm
long.
Small screw-clamp ‘Barrel’ nipple (in plated
finish)—2 for £1.
5mm diameter × 7mm long.
No.2 screw clamp barrel nipple for brake
cables—£1.50p each.
6mm diameter body × 9mm long, with
cross-head locking screw. Plated finish. No.2/2mm
diameter through hole for brake cables: Mobylette, Raleigh,
Auto-Vap, etc.
Extra long No.2 screw clamp barrel nipple for brake
cables—£2 each.
6mm diameter body × 14mm long, with
slot-head locking bolt. Plated finish. No.2/2.9mm
diameter through hole for brake cables: Mobylette, Raleigh,
Auto-Vap, etc. Extra length body for really secure location
on brake arm. Slotted bolt head for firm tightening.
Slotted body so you can easily hold in place for tightening of
the clamp screw.
Short M6 cable adjuster with thin locknut—50p each.
17mm length of thread under head.
Straight knurled head with 6.15mm diameter ferrule cup for No.1
size sheath. Bright zinc and clear passivate
finish.
Long M6 cable adjuster with
locknut—£2 each.
38mm M6 thread, hex head 8mm A/F, with cable cup 6.83mm diameter
suitable to fit No.2 cable ferrule 6.7mm diameter. Through
hole 3.3mm. Bright chrome plated finish.
Slotted cable adjusters c/w slotted lock thimble.
Machined brass with bright Nickel plated finish.
Long M6 adjuster with 30mm threaded shank, 9mm hex head ×
10mm deep, with 7.2mm Ø cable cup for No.2
ferrule—£2 each.
Short M8 adjuster with 18mm threaded shank, 11.5mm Ø
knurled head × 10mm deep, with 6.2mm Ø cable cup for
No.1 ferrule—£2 each.
Short M8 adjuster with 18mm threaded shank, 11.5mm Ø
knurled head × 10mm deep, with 8mm Ø cable cup for
No.2 ferrule—£2 each.
In-line cable adjusters:
50mm ‘Long’ in-line cable
adjuster—£3 each.
Extends by 18mm. No.1 / 6.5mm cable cup
at head end, No.2 / 7.5mm cable cup at body end 6mm×1mm
pitch standard thread, + locknut. Bright plated
finish.
40mm ‘Short’ in-line cable
adjuster—£2.50p each.
Extends by 13mm. No.1 / 6.5mm cable cup
at both ends, 6mm×0.75mm superfine thread, + locknut.
Bright plated finish.
Throttle cable adjuster for Bing carburettors c/w
locknut—£2.
Thread 5mm × 0.8mm pitch.
Magura Cable adjusters. The Brake
cable adjusters are the type with a ‘location tag’ on
the end that goes into a slot in the lever bracket, as typically
fitted on Puch Maxis, etc, in the ’70s. The trouble
with the original adjusters was they were made out of cheap alloy
and prone to break. These Magura adjusters are made from
nickel-plated brass ... proper quality.
Magura brake cable adjuster (short)—£4 each.
Fully screwed up, total length 32mm. Nickel plated
brass.
Magura brake cable adjuster (long)—Sold Out.
Fully screwed up, total length 50mm. Nickel plated
brass.
Cranked-end adjuster—Sold Out.
Fully screwed up, total length 65mm. (As typically fitted
to throttle cables on Puch Maxi, etc.)
Cable pinch bolt set (round head) with flat washer and
nut—£1 each.
Cable Straddle Bridge c/w pinch bolt set (hex head) with spring
washer and nut—£1.50p each.
Works with centre-pull caliper front brakes,
eg: AV32, AV42, etc.
Cantilever brake block holder c/w washer, nut & clamp rings
(6mm thread, & for 6mm stud on block)—£1.50
each.
Angled rubber boot 60° for cable adjuster—£1
each.
8mm Ø / 5mm Ø
ends.
Small Cable Gaiter (straight)—£1 each.
Bellows 12mm Ø × 63mm long
in free state. 6mm Ø / 5mm Ø ends.
Large Cable Gaiter (straight)—£1 each.
Bellows 16mm Ø × 73mm long
in free state. 8mm Ø / 5mm Ø
ends.
Replacement Heavy duty brake cable inner wires for
Mobylette. No.2/2mm heavy-duty wire size c/w fitted
‘bell’ nipple for correct fitting into Moby pattern
brake levers.
Front cable inner wire 38" long—£3
Front cable inner wire 42" long—£3
Rear cable inner wire 67" long—£5
Mobylette AV89 Leading-link fork type front brake cable.
Genuine NEW/old stock—£7.
36½" silver/grey sheath (extra long
cable required to suit leading-link fork). No.2/2mm HD
inner cable wire c/w fitted ‘bell’ nipple for correct
fitting into Moby pattern brake levers.
Norman Nippy Mk 3 (with MiVal engine) No.5372 clutch
cable—£9 each.
Genuine NEW/old stock.
40" silver/grey sheath, 5/16" Cycle thread
(26TPI) adjuster c/w locknut at lever end, terminating in
‘bell’ nipple, M6 engine adjuster c/w locknut,
terminating in 5mm long barrel nipple. No.2/2mm HD inner
cable wire with 4" free length.
Norman Nippy/Lido types front brake cable. Genuine
NEW/old stock—£9.
39" silver grey sheath. 5/16" barrel
nipple at lever end. 1/4" ball nipple, with 6mm thread
captive adjuster & locknut at brakeplate end. No.2/2mm
HD inner cable wire with 3¼" free length.
Note: different types of Norman front brake cables.
Please select the correct one for your bike.
Norman Nippy/Super Lido models with Sachs engine. Clutch
cable—£9.
Genuine NEW/old stock.
40½" silver grey sheath. 5/16"
barrel nipple at lever end. 5mm in-line barrel nipple with
5mm adjuster at engine end. No.2/2mm HD inner cable wire
with 2" free length.
Norman Nippy Mk2 type 2 (with Villiers 3K engine and British
Hub Co. hubs)/Mk4/Lido. Front brake
cable—£9.
Genuine NEW/old stock.
35" silver grey sheath with in-line
adjuster. 5/16" barrel nipple at lever end. 1/4" ball
nipple at hub end, with captive adapter ferrule for
brakeplate. No.2 / 2mm HD inner cable wire with 3" free
length.
Note different types of front brake cable. Please select the
correct one for your bike.
Norman Nippy/Lido front brake cable—£9.
Genuine NEW/old stock.
35" silver grey sheath. 5/16" barrel
nipple at lever end. 1/4" ball nipple, with 1/4" thread
captive adjuster at brakeplate end. No.2/2mm HD inner cable
wire with 4½" free length.
Note different types of front brake cable. Please select the
correct one for your bike.
Norman Nippy Mk2 type2/Mk4/Lido Villiers 3K gear
cable—£9.
Genuine NEW/old stock.
39" silver grey sheath with in-line
adjuster. 5/32" barrel nipple × 3/16" long at Amal
twistchange end. 1/4" ball nipple at gearbox end.
No.1/1.5mm inner cable wire with 4½" free
length.
Norman Nippy Mk 3 (MiVal) front brake
cable—£9 each.
Genuine NEW/old stock.
33" silver grey sheath with in-line
adjuster. 5/16" barrel nipples each end. Captive
adapter ferrule for brakeplate end. No.2/2mm HD inner cable
wire with 3½"" free length.
NSU Quickly genuine NEW/old stock cables with silver/grey
sheath.
Clutch cable for Quickly N Standard & S de Luxe with barrel
nipple at lever end (from 1954)—£10 each.
Manufacturer’s part number 164400503.
Gear cable for Quickly S2-23 three-speed (twin-cable
type)—£18 each. Manufacturer’s part
number 164405503.
Gear cable for Quickly two-speed—£12 each.
Manufacturer’s part numbers 164400503 (plain cable at
engine end) & 164402503 (with cup ferrule at engine end).
Gear cable for Quickly Lux & N models (with in-line adjuster
/ ball-end nipple fitting)—£14 each.
Front brake cable for Quickly Standard and de Luxe (to chassis
482/54/522989)—£10 each.
Manufacturer’s part number 164400501
Throttle cable for Quickly Luxe & N
models—£8 each.
Peugeot 103 type/Vogue mopeds rear brake cable. Genuine
NEW/old stock—£9.
1.565 metre silver grey sheath.
8×8mm barrel nipple at lever end with 5mm thread captive
adjuster & locknut. 1.7 metre No.1/1.5mm inner
cable with 6mm screw nipple and captive end ferrule at brakeplate
end.
Front brake cable for early Raleigh leading-link front
suspension models—£9
Raleigh RM5, Phillips Gadabout Mk4, Norman Lido Mk3.
No.2/2mm heavy-duty inner wire size. Original silver/grey
36" sheath with in-line adjuster. C/w fitted barrel nipple
9/32"Ø × 1/4" long for correct
fitting to Raleigh pattern brake levers.
Could also be fitted to Moby AV89
leading-link models by changing fitted barrel nipple for a bell
nipple instead.
Note leading-link front suspension models require this
extra-long cable. It is too long for fitting to the later
telescopic fork models.
Replacement Heavy duty brake cable inner wires for
Raleigh. No.2/2mm heavy-duty wire size c/w fitted barrel
nipple 9/32"Ø × 1/4" long for correct
fitting into Raleigh pattern brake levers.
Front cable inner wire 43" long—£3
Rear cable inner wire 61" long—£5
Traditional rubber cable ties, 10-pack—£3
3" long × 2.5mm thick.
John Bull type heavy-duty, extra-strong, rubber cable ties,
5-pack—£5.
4¼" long × 2.5mm thick.
Workshop solder reel—£7.50.
100g reel multicore-fluxed proper lead solder
for cables and electrical. 60% tin Sn & 40% lead Pb
alloy. High grade 22swg/0.7mm wire. Flux not
required, it’s contained in the multicore.
Honda pattern steering lock (old style) c/w 2 keys. 10mm diameter locking pin extending to 13mm long. Fixing: 2 × 6mm screws @ 18mm centres—£7 set.
Mobylette—blanking plug for steering lock
socket—£3.
Actual size 15mm × 21mm.
Mobylette logo moulded onto head.
Neimann pattern steering lock, 40mm long, c/w 2 keys &
release spring—£10.
Body 11.5mm diameter × 26mm long.
Pin 8mm diameter × 14mm long.
Fit: most Mobylette models and other mopeds.
Suzuki pattern steering lock (old style) c/w 2 keys. 10mm diameter locking pin with 8mm flat, extending to 16mm long. Fixing: 2 × 5mm screws @ 17mm centres. £7 set.
Yamaha pattern steering lock (old style) c/w 2 keys. 10mm diameter locking pim extending to 17mm long. Fixing: 2 × 6mm screws @ 29mm centres. £7 set.
Tax disc holders, dual ‘trade’ Rubberlite—£7 each.
Selection of new Moby pedal shafts—£8 each.
Traditional style Roadster Pattern pedals (with reflectors in blocks)—£7 pair.
Italian Pattern block pedals—£7 pair.
Bown moped replica LH &
RH panel mouldings in fibreglass,
with presentation faces finished in coloured gel
coat—£60 pair, or singly £30 per side.
Require painting to match the genuine panels,
which were steel pressings but, once these f/glass covers are
fitted, the difference is barely noticeable.
Cyclemaster carburettor cover: replica fibreglass moulding c/w
mounting spacer, to suit early models fitted with Amal
carburettor—£17.
Presentation face finished in coloured gel
coat. Requires painting to match. The genuine carb
cover was a steel pressing but, once fitted, this fibreglass
cover is practically indistinguishable from the
original.
Cyclemaster carburettor cover: replica fibreglass moulding c/w
mounting spacer, to suit later 32cc models fitted with Bletchley
BEC carburettor—£17.
Presentation face finished in coloured gel
coat. Requires painting to match. The genuine carb
cover was a steel pressing but, once fitted, this fibreglass
cover is practically indistinguishable from the
original.
Honda Amigo, Graduate, Novio replica footplate/engine cover in
fibreglass with presentation faces finished in coloured gel
coat—£40.
Requires painting to match the genuine
panels, which was a plastic moulding on the Amigo & Novio,
and a steel pressing on the Graduate but, once these fibreglass
covers are fitted, the difference is barely
noticeable.
Honda P50 Motorwheel replica carburettor cover in fibreglass
with presentation faces finished in coloured gel
coat—£48.
Panel with 16 ‘ventilation slots’
machined out and complete with three sets of rubber mounting
spacers, speedclips, and screws. Moulded in white gel coat,
though may require painting to match the genuine panel, which was
a plastic moulding. Once these fibreglass covers are
fitted, the difference is barely noticeable.
Also available as ‘budget’ plain and unmachined panel
moulding—£30.
The slot positions are marked in the
moulding, but not cut out. Can be cut out with Dremel
tooling or woodworking router. For DIY, if you want to cut
your own ventilation slots (or not bother at all, because
they’re only cosmetic, and don’t actually do
anything). No mounting spacers, speedclips or screws with this
kit, but can be additionally supplied upon request.
Magneto cover for Miller magneto, 4¾" diameter.
NEW manufacture. Spun-formed with
‘mound’' in centre, location dimple and plain
finish. These covers are primarily intended for fixing with
a wire clip over the face.
Note: currently NOT available with fitted side clips, so
if you particularly want the side clip fitting method, you'd have
to DIY.
Spun Alloy cover—£20 each
Spun Brass cover—£30 each.
Magneto cover for Mobylette M-series, new, in black
plastic—£15 each.
Limited stock.
Magneto cover for Wipac Bantamag & Series 90,
4½" diameter.
NEW manufacture. Spun-formed with
location dimple and plain finish. These covers are
primarily intended for fixing with a wire clip over the face.
Note: currently NOT available with fitted side clips, so
if you particularly want the side clip fitting method, you'd have
to DIY.
Spun Alloy cover—£20 each
Spun Brass cover—£28 each.
Mobylette AV42, AV44, AV48, etc replica fibreglass sidepanel
mouldings. Comprises LH
& RH panel mouldings in
fibreglass with presentation faces finished in coloured gel
coat—£36 pair or singly £18 per side.
Require painting to match the genuine panels,
which were steel pressings but, once these f/glass covers are
fitted, the difference is barely noticeable.
Mobylette AV76 (rigid frame) replica fibreglass sidepanel
mouldings. Comprises LH
& RH panel mouldings in
fibreglass with presentation faces finished in coloured gel
coat—£44 pair or singly £22 per side.
Require painting to match the genuine panels,
which were steel pressings but, once these f/glass covers are
fitted, the difference is barely noticeable.
Mobylette AV78 (plunger frame) replica fibreglass sidepanel
mouldings. Comprises LH
& RH panel mouldings in
fibreglass with presentation faces finished in coloured gel
coat—£44 pair or singly £22 per side.
Require painting to match the genuine panels,
which were steel pressings but, once these f/glass covers are
fitted, the difference is barely noticeable.
Mobylette AV65, AV68, AV85, AV87, AV88, AV89, Raleigh RM5,
Norman Lido Mk3, Phillips Gadabout Mk4 replica fibreglass early
type ‘rounded’ sidepanel mouldings. Comprises
LH & RH panel mouldings in
fibreglass with presentation faces finished in coloured gel
coat—£44 pair or singly £22 per side.
Require painting to match the genuine panels,
which were steel pressings but, once these f/glass covers are
fitted, the difference is barely noticeable.
Mobylette late model AV88, AV89, SP50, SPR, Raleigh RM5 later
type ‘angular’ replica fibreglass side panel
mouldings; comprises LH &
RH panel mouldings in fibreglass
with presentation faces finished in coloured gel
coat—£44 pair or singly £22 per side.
Require painting to match the genuine panels,
which were steel pressings but, once these fibreglass covers are
fitted, the difference is barely noticeable.
Mobylette Cady M1, M1P, M1PRT, M1PRTS, M3PRT, M3PRTS, M3PRTSG
(fit all Cady models) replica fibreglass sidepanel
mouldings. Comprises LH
& RH panel mouldings in
fibreglass with presentation faces finished in coloured
gel-coat—£36 pair or singly £18 per side.
Require painting to match. The original
panels were steel pressings, but once these f/glass covers are
fitted, the difference is barely noticeable.
Mobylette M40/N40 rigid frame models replica fibreglass
sidepanel mouldings. Comprises LH & RH
panel mouldings in fibreglass with presentation faces finished in
coloured gel coat. £30 pair or singly £15 per
side.
Require painting to match the genuine panels;
N40/M40 models come variously with either LH or RH fuel
taps. With these panels both LH & RH
are moulded ‘blank’, leaving the option of cutting
relief either side to suit LH or
RH tap as required. The
genuine panels were steel pressings but, once fitted, these
fibreglass covers are practically indistinguishable from the
original.
Mobylette panel set to suit early tubular frame models.
Comprises LH, RH, and top trim mouldings in fibreglass with
presentation faces finished in coloured gel coat. £44
set of three mouldings or, singly—£20 per side and
£8 for top trim.
Require painting to match the genuine panels,
which were steel pressings but, once these f/glass covers are
fitted, the difference is barely noticeable.
Mobylette ‘Standard’ LH Direct-drive replica fibreglass side panel
to suit early tubular frame models fitted with AV7
engine—£30.
Fits AV32, AV51, etc, models with
direct-drive and fitted with later model AV7 engine.
Note: does not fit the earlier AV3 or AV35 engined
models.
Requires painting to match the original panel, which was a steel
pressing, but once these fibreglass covers are fitted, the
difference is barely noticeable.
Mobylette drive chaincase blanking plug 35mm—£2
each.
For: Mobylette AV89, Raleigh RM5, Phillips Gadabout Mk4, Norman
Lido Mk3. Also fits Honda C50/C70/C90 chaincases.
Motobécane X-7 replica fibreglass front
mudguard—£25.
Requires painting to match the genuine
mudguard, which was a plastic moulding. All mounting holes
moulded in position. Once this repro fibreglass mudguard is
fitted, the difference is barely noticeable.
Norman Nippy Mk1 & Mk2 (type-1) models fitted with Sachs
engine/Capri pattern frame. Also fit Achilles Capri
models. Replica LH &
RH engine cover &
LH engine cover/chainguard
mouldings in fibreglass with presentation faces finished in
coloured gel coat—£42 pair.
Singly—£22 LH
side—£20 RH side.
Require painting to match the genuine panels,
once these f/glass covers are fitted, the difference is barely
noticeable.
Note: the original panels were made in pressed
steel. The RH engine cover
panel originally had a ‘lifting handle’ mounted in
the cover, and two holes were pierced through the cover for
fixing this. The fibreglass replacement panel is moulded
with the holes blanked out so can be used plain without
re-fitting the handle, but their positions are marked with
circles if you may wish to drill them out to re-fix the original
lifting handle (for cosmetic purposes only—you can’t
lift a bike from a fibreglass panel). The original steel
panel was equally incapable of withstanding the bike being lifted
by the handle anyway, and the steel would always become distorted
and split around the front panel fixing point. We
don’t do replacement lifting handles yet, but are working
on a ‘cosmetic’ replacement handle made from
aluminium to go with the panel. Hopefully to become
available shortly.
Norman Headlamp Nacelle assembly
(complete)—£85.
Kit comprises: NEW fibreglass moulded nacelle housing, NEW
headlamp rim/lens/reflector assembly (Honda C50) c/w 6V×15/15W MPF headlamp bulb and
socket fittings (+ pilot bulb socket—not used),
2 × 5mm stainless
steel screws to fit headlamp + 2 × anti-shake
nylon washers.
Please note: the moulding is finished
in a plain gel-coat that will probably require painting to
whatever topcoat colour is required to match the paint of
whatever bike it is being fitted on. The gel coat is not a
finished colour coat.
Fits: Norman Nippy Mk2/type 2 (Villiers), Norman Nippy Mk3
(MiVal), Norman Nippy Mk4 (Villiers), Norman Lido Mk1 (Villiers),
Norman Super Lido (Sachs), Achiles Lido
Raleigh RM1/RM2 replica fibreglass sidepanel mouldings.
Comprises LH & RH panel mouldings in fibreglass with
presentation faces finished in coloured gel coat—£48
pair or singly £24 per side.
Require painting to match the genuine panels,
which were steel pressings but, once these f/glass covers are
fitted, the difference is barely noticeable.
Raleigh RM4 Automatic, Norman Nippy Mk5, Phillips
Panda Mk3 replica fibreglass sidepanel mouldings.
Comprises LH & RH panel mouldings in fibreglass with
presentation faces finished in coloured gel coat—£44
pair or singly £22 per side.
Require painting to match the genuine panels,
which were steel pressings but, once these f/glass covers are
fitted, the difference is barely noticeable.
Raleigh RM4 Automatic, Norman Nippy Mk 5, Phillips Panda
Mk 3, Raleigh RM11 Super Tourist, RM12 Super 50,
replica fibreglass toolbox cover mouldings. Comprises LH
& RH toolbox cover mouldings
integral with ‘rim bead’ for better edge strength on
the moulding—£36 pair or singly £18 per
side.
Require painting to match the genuine panels,
which were steel pressings but, once these f/glass covers are
fitted, the difference is barely noticeable.
Raleigh Runabout RM6, RM8, RM9, RM9+1, RM11 Super Tourist,
RM12 Super 50 replica fibreglass sidepanel mouldings.
Comprises LH & RH panel mouldings in fibreglass with
presentation faces finished in coloured gel coat—£36
pair or singly £18 per side.
Require painting to match the genuine panels,
which were steel pressings but, once these f/glass covers are
fitted, the difference is barely noticeable.
Raleigh Ultramatic RM9, RM9+1 replica fibreglass Chainguard
moulding with presentation face finished in coloured gel
coat—£25.
Will probably require painting to match your bike.
The original chainguard was a plastic
moulding, and once fitted, the difference is barely
noticeable.
Can also be fitted to other rigid frame models: Raleigh RM4, RM6
Runabout, RM8, RM11 Super Tourist, and RM12 Super-50; Phillips
Panda Mk3; Norman Nippy Mk5; Mobylette AV42, AV44, AV48,
etc.
Viberti ViVi, Victoria Tourist, Dot ViVi replica fibreglass
carburettor cover moulding. Moulding in fibreglass with
presentation face finished in coloured gel coat.
Cover as moulded with ‘blanked
vents’—£8.
Cover fully finished with ‘cut
vents’—£18.
Require painting to match the genuine panel,
which was a steel pressing but, once these f/glass covers are
fitted, the difference is barely noticeable.
Villiers 1F & 2F front sprocket cover
casting—£15.
New aluminium casting.
Villiers M1580 spun aluminium mag flywheel cover.
New—£8.
5¾" diameter for 1F & 2F engine types.
M5 Stainless-steel pozi-pan (crosshead) sidepanel screw
set—50p per set.
Comprises:
M5 Stainless-steel machine screw × 12mm
long, 5mm × 12mm O/D
stainless-steel washer (polished on one face), 5mm nylon
‘compression’ washer.
These generally fit sidepanels on all models of Raleigh mopeds
RM4–RM12. All models of Mobylette; Phillips Gadabout
Mk4, Panda Mk3; Norman Lido Mk3, Nippy Mk5; and pretty much
anything else using M5 panel fixing. They look smart due to
the bright polished stainless steel finish, they’re readily
available, and a lot cheaper than the original slotted-head
fastening screw. (green background).
M6 Stainless-steel pozi-pan (crosshead) sidepanel screw
set—60p per set
Comprises:
M6 Stainless-steel machine screw × 12mm
long, 6mm × 14mm O/D
stainless-steel washer (polished on one face), 6mm nylon
‘compression’ washer. These generally fit the
legshield mounts on all models of Raleigh mopeds
RM4–RM12. All models of Mobylette; Phillips Gadabout
Mk4, Panda Mk3; Norman Lido Mk3, Nippy Mk5; and pretty much
anything else using M6 panel fixing. They look smart due to
the bright polished stainless steel finish, they’re readily
available, and a lot cheaper than the original slotted-head
fastening screw. (purple background).
M6 slotted-head panel nuts with knurled edge—£1
each.
Plated finish. Mobylette AV92, SP93, SP94TT sidepanel
fixing, etc.
Mobylette Toolbox Cover Screws
White—£3 each.
Black—£3 each.
Anker Laura, Batavus, Ariel 3, SIM 50, etc. See Anker Laura Section.
Cyclemaster clutch chainwheels. Reconditioned and fitted with new cork inset sets. Service exchange only—£30.
DKW clutch plate (fibre type). For: Hummel various types. 72mm I/D × 99mm/104mm O/D & 6 tags—£8 each.
Excelsior S1/G2 clutch chainwheel, reconditioned & new cork set. Service exchange only—£40.
HMW clutch plates, bonded type—£10 each.
Mobylette Cady Clutch shoes. £20 pair.
Mobylette/Raleigh ‘special’ clutch centre nuts,
M11×1mm pitch (for later series post-1960 engines).
Single-speed type Dimoby (short) clutch nut (Top)—£3
each.
Variator type long clutch nut—£4.50p each.
Note: earlier series pre-1960 motors
were equipped with smaller M10×1mm threaded crank journals,
so it’s as well to check your threaded diameter is
compatible.
Single-speed Dimoby (short) clutch nut (as top illustration),
M10×1mm pitch—£3 each.
Note: for earlier series pre-1960
engines with smaller 10mm thread size on crank end.
Norman Nippy Mark 3/MiVal clutch plates.
Red tag: plain steel plate 83mm O/D × 45mm/51mm I/D & 6 internal tags—£6
each.
Brown tag: both sides cork bonded 84mm/95mm O/D × 52mm I/D & 6 external tags—£8
each.
Orange tag: 1-side plain steel/1-side cork bonded
84mm/95mm O/D × 52mm
I/D & 6 external
tags—£8 each.
NSU Quickly / Puch MS (fan-cooled) clutch plates—£7 each.
Peugeot 102/103 type centrifugal clutch shoe sets, new—£15 set of two shoes.
Peugeot 102 & 103 type clutch disc no. 42012—£8 each.
Sachs clutch plates, cork insert or bonded types—£8 each.
Sachs clutch plates (steel bonded). Heavy duty plate for 74cc Model-CM32, 30mm/35mm I/D × 94mm O/D & 5.2mm thick—£8 each.
Suzuki clutch plate (fibre type). For A50K, RV50K, L, M, A models, 83mm I/D × 106mm/116mm O/D & 6 tags—£8 each.
Vespa clutch plate (aluminium bonded). 76mm I/D × 108mm/119mm O/D & 6 tags—£8 each.
Villiers Junior, JDL, 2F, 4F, etc, clutch chainwheel, reconditioned & new cork set. Service exchange only—£30.
Villiers Junior, JDL, 2F, 4F, etc, clutch plate, reconditioned & new cork set. Service exchange only—£30.
Zündapp clutch plate (steel bonded and fibre types). For KM48/50, 255, 257, 258 models. 48mm I/D × 77mm/83mm O/D & 6 tags—£8 each.
Haynes Workshop Manuals—all new/old stock.
Honda SS50 Sports Moped 1973–77 … £8.
Suzuki FR50, 70, 80, 1974–87 … £8.
Suzuki CS50 & 80 Roadie, 1982–83 … £8.
Suzuki GP100 & 125 Singles, 1978–93 …
£8.
Mobylette ‘Mobymatic’ tank badges for AV76, AV77,
AV78, AV88, AV89, etc. 2 × badge sets
£18 pair (2 × badge mounts @ £5 each + 2
× domed badges @ £4 each).
Picture:
‘Mobymatic’ badge (top left) shows the domed decal as
supplied on peelable backing, and (top right), as stuck onto the
badge mount. Badge Mount (bottom left) shows the bright
front face of the badge mount that the domed decal sticks onto,
and (bottom right) shows the textured back of the badge mount
with location pin (this side sticks to the tank). The
original badge and special screw have not been available for some
time. Original Mobylette badge was plastic moulded, back
painted, and was held on by a special M3 × 0.6mm pitch
screw. It would not have been viable to remake badges by
the original method, so they have been re-created by more
practical modern means. The new badges consist of two
components, a bright nickel plated metal diecast badge mount, and
a domed badge with self adhesive backing so it can be stuck to
the bright face of the badge mount. The textured back of
the badge mount can then be glued (impact adhesive,
araldite/resin, or mastic) to the badge mounting point on the
fuel tank, and engages into the correct position by the location
pin on the back of the badge mount, which centres into the former
screw hole.
Raleigh 55mm ‘domed’ badge with back adhesive.
Raleigh RM11 ‘Super Tourist’, Raleigh RM12
‘Super 50’ tankside badge (2-per).
Raleigh Roma scooter legshield badge (1-per).
Self adhesive, and simply applied by peeling off backing tape and
sticking in place. £4 each
Tank badges for :
Raleigh RM4 Automatic & RM5
Supermatic—£18 pair. (2 × badge
mounts @ £5 each + 2 × domed badges @
£4 each).
Norman Nippy Mk 5 & Norman Lido
Mk 3—£18 pair. (2 × badge
mounts @ £5 each + 2 × domed badges @
£4 each).
Phillips Panda Mk 3 & Phillips Gadabout
Mk 4—£18 pair. (2 × badge
mounts @ £5 each + 2 × domed badges @
£4 each).
These tank badges work in a similar way to
the original plastic moulded badges, however they comprise of a
metal cast and bright Nickel plated 38mm badge mount which
locates and glues to the tank plate. The 38mm
Raleigh/Norman/Phillips domed badges have a self-adhesive
backing. Simply remove the peel-able backing tape and stick
to the face of the badge mount.
Lapel Badge versions also available… Raleigh / Norman / Phillips 38mm diameter ‘pin’ badges—£7 each.
Villiers 3K moped engine: new mag flywheel cover badge. Approx size 2" × 1 5/16 to fit in the 3K engine mag flywheel cover recess. Self adhesive, and simply applied by peeling off backing tape and sticking in place—£4 each
New BSF flip-cap oilers and grease nipples. Genuine
British-made Partridges Pat.28068
Yellow background (left): 3/16" BSF × 32tpi flip-cap
oilers—£2 each.
Light green background (middle): 1/4" BSF × 26tpi flip-cap
oilers—£2 each.
Dark green background (right): 3/16" BSF × 32tpi grease
nipples—£2 each.
This size was typically fitted into a lot of
cyclemotor, autocycle, & lightweight motor cycle sprung
forks.
Flip-cap oilers by ‘Adams of Coventry’, Knock-in to 5/16" or 8mm diameter hole. Proper riveted and sprung cap with quality plated finish. £1 each.
Grease Nipples—small size ‘Specials’.
M4 = Original Mobylette/Raleigh clutch, plated silver, ‘ball’ head—£1 each. (left/red)
M5 = Original Mobylette 10-34/Raleigh pedal shaft/front forks, Huret speedo drive etc, brass, ‘ball’ head—£2 each. (green)
M5 = Mobylette/Raleigh pedal shaft/front forks, Huret speedo drive etc, plated silver, modern type ‘clip-on’ head—£1 each. (blue)
M5 = Original Mobylette 10-22896 pedal shaft, brass, ‘inset-ball’ head—£1 each. (purple)
5mm ‘knock-in’ = Mobylette
‘unthreaded’ bore type pedal shaft, brass,
‘inset-ball’
head—£1 each. (right/yellow)
Can be used as repair to drill out damaged
5mm threads to 5mm plain bore, and knock in this replacement type
grease nipple.
"Continental" cotter pins—£2 for a pair.
‘Conti’ cotters are 9mm diameter
(0.354"), which is 0.5mm/20thou smaller diameter than Imperial
cotters. You’d typically expect to find
‘Conti’ cotters on European, French, Italian, German,
Austrian, Spanish, Japanese machines, etc.
Imperial 3/8" (0.375") cotter pins—2 for £1.
BSA Bantam/Triumph Tiger Cub kickstart rubber, 2½" long × 3/8" bore. £3 each.
Burman kickstart rubber, 4" long × 5/8" bore—£3 each.
Mobylette AV89/Raleigh RM5 Pattern rear footrest
rubbers. £5 pair.
3" internal depth, ½" bore, total length 3¼".
Cycle/Cyclemotor centre stand—£15.
Clamping location behind bottom bracket.
Minimum height 295mm from bottom of frame,
with leg heights adjustable in 14 increments over 65mm to max
height 360mm. Cast aluminium mounting post &'
clamp. Fabricated steel assembly with tubular steel legs
and rigid GFP button-lock adjustable feet. Base width
across feet 200mm. Internal spring-up leg assembly.
Neat and solid, with substantial construction. Should suit
most cycle frames with 20"–26" wheels.
Raleigh 'Universal' pattern Cycle/Cyclemotor centre
stand—£20.
Clamping location behind bottom
bracket. Height 320mm from bottom of frame (cycle frames
around 24" / 700 wheel size). Fabricated steel mounting
post & clamp. Fabricated tubular steel leg assembly
with spring loaded GFP pivot and feet. Base width across
feet 200mm. Substantial and solid construction.
Cycle/Cyclemotor side stand/prop stand—£5.
Clamping location behind bottom bracket.
Minimum height 240mm from bottom of frame,
with telescopic inner leg/foot adjustable up to +100mm max height
340mm. Cast aluminium mounting post & formed steel
clamp. Plastic block pivot with aluminium tube leg, with
aluminium telescopic inner tube leg and plastic foot. Cheap
and cheerful, will stand the bike fine on its own (note:
it’s never advised to ‘lean’ on any
propstand). Should suit most cycle frames with
20"–26" wheels. Upper leg could be cut shorter to
suit smaller cycles.
Mobylette M40/50/51V, etc. Shouldered stand bolts
c/w
nut—£3 each.
‘Repair Kit’ Shouldered stand bolt c/w nut and
washer—£4 each.
(With these ‘Repair Kit Bolts’,
you drill the worn hole in the stand from 11mm to
12mm).
Raleigh/Mobylette stand pivot bolt Fix-it kit—£1
each.
Irritated by that wobbly stand on your
Raleigh or Mobylette moped? Your can simply Fix-it with
this bolt & nut set—just drill the pivot bracket/bush
on the frame and the two holes in the stand out to 5/16" and put
this new bolt in.
There’s a little story as to why all the Raleigh moped
stands are so wobbly7hellip;
Mobylette sized their stand/frame to 7mm, and put in a 7mm pivot
bolt. When Raleigh received all the Motobecane frame
components to build all their moped models from RM4 to RM12, the
main parts were received as components for assembly at
Nottingham. While Raleigh sourced the frame bracket/bush
and stand from Moby standardly sized at 7mm, they didn’t
source the 7mm bolts—and fitted a ¼" (6.4mm) bolt
instead, which is why all the Raleigh stands are so wobbly.
Fix-it stand pivot bolt kit also sorts out Moby stands which have
worn loose over the years.
Mobylette type centrestand springs:
Old type Mobylette (tubular frame models), 75mm/3" free length
(fits on spring centres 3¼"), 2mm wire, 20 coils, 10mm
diameter—£3 each.
S-15877 later type (pressed-steel frame models with round tube
stand) Mobylette AV42–AV89, AV92, SP93, SP94, etc; and
Raleigh models RM4, RM5, RM6, RM8–RM12; 100mm/4" free
length (fits on spring centres 3¾"); 2.0mm wire, 20 coils,
10mm diameter—£3.50p each.
Later type (pressed-steel stands) Cady, M40, 50V, 51V; 115mm free
length (fits on spring centres 120mm); 2.5mm wire, 18 coils, 16mm
diameter—£4 each.
Stand Springs (universal assorted). Left to right...
Gold 19mm diameter × 106mm long × 3mm wire × 22
coils (very strong)—£4
Gold 19mm diameter × 82mm long × 3mm wire × 15
coils (very strong)—£2
Black 14mm diameter × 80mm long × 2mm wire × 26
coils—SOLD OUT
Silver 16mm diameter × 82mm long × 2.5mm wire ×
9 coils—£1.50p
Silver 14mm diameter × 58mm long × 2.5mm wire ×
9 coils—£1.50p
Tomos Kickstart return springs—£3 each.
A3, A35, etc
Mobylette/Raleigh pedal shaft circlips:
Inner clip (special type), 1 per assembly—75p each.
Outer clip, 2 per assembly—50p each.
1/16" sq × 5/8" long Wipac slot key for points cam in Bantamag and Series-90 mag flywheels—£3 each
1/16" Wipac woodruff key for Wipac Bantamag and Wipac
Series-90 mag flywheels—£3 each.
Also fits Miller FW17 type mag flywheels
Imperial 1/16" × 3/8" British Standard
SS key no. 211 / American Standard key No. 203.
2mm Woodruff Key—£2 each.
‘Standard Key’ 2mm wide ×
12mm long × 5mm deep (nominal measurements). Fits
Raleigh RM1 / RM2 mag flywheel, etc.
‘Short Key’ 2mm wide × 9.5mm long × 3.6mm
deep (nominal measurements).
3mm Woodruff Key (for Bosch type magsets
etc.)—£1 each.
2.96mm wide × 9.22mm long ×
3.66mm deep (based on 10mm diameter)
3mm Woodruff key (large size)—£2 each.
3mm wide × 12mm long × 5mm
deep.
4mm Woodruff Key—£2 each.
4mm wide × 12mm long × 5mm deep
(nominal measurements).
Original Mobylette/Raleigh clutch drum Woodruff key with
‘anti-tip’ tag—SOLD OUT
3mm wide × 10mm long × 3.2mm deep
(nominal measurements).
Stainless Steel ruler, 6"/150mm—£2 each.
Stainless Steel ruler, 12"/300mm—£3 each.
Jeweller’s Loupe eyepiece set; ×2, ×5, and ×10 magnification lenses. Very useful for fine examination of parts—£4 set of 3.
Ignition timing Micro adjuster tool—£25.
Fits all heads with 14mm plug thread. Graduated in
increments of 0.1mm over 7mm range
Q-Swiss type penknife—£3.
10" hand pump c/w 6" long
Schrader valve pump adapter—£3 each.
Plastic body 1" diameter. Typically
fits Mobylette, etc. Eg: M-series & N40 have pump clips
beneath the rear carrier.
Cycle pump connector—£1.50p each.
6" long. Traditional braided sheath in
blue/red/green. Old style and good quality, for Woods
valves.
Schrader valve pump connector—£1.50p each.
7" long. Traditional braided sheath in
red/grey. Old style and good quality, for Schrader
valves.
Cylinder black paint 100ml tin—£5.
Solvol Autosol—The original metal and chrome polish,
75ml/3.33oz tube—£5.
Brilliant for polishing chrome, aluminium, stainless steel,
brass, copper & other metals.
Mobylette/Raleigh Top engine mounting bolt sets
Mobylette AV3–AV76, etc, and Raleigh RM4, RM6, RM8,
single-speed ‘fixed’ engines—£1.
Top engine high-tensile 8.8 mounting bolt +
nut, plated finish. M8×75mm
Mobylette M-series N40, M40/50V, 51V, etc, variator and sprung
bottom mount models—£2.50.
Top engine high-tensile 8.8 mounting bolt and
nylock nut, plated finish. M8×138mm (special
length)
Mobylette AV89, SP50, SP94TT, AV92, etc; Raleigh RM5, RM11, RM12,
etc; variator and sprung bottom mount models—£3.
Top engine high-tensile 8.8 mounting bolt and
nylock nut, plated finish. M8×160mm (special
length)
Mobylette/Raleigh Metalastic bush sets. 2 ×
large top bushes + 1 × smaller lower
bush—£20 set of 3.
Large bush 32mm O/D ×
8mm I/D, core 23mm long
× sleeve 18mm long. Available
seperately—£8.
Small bush 20mm O/D ×
6mm I/D, core 22mm long
× sleeve 16mm long. Available
seperately—£6.
Mobylette AV48, etc / Raleigh RM9 cylinder head/engine
mounting bracket metalastic bush—£15 each
22mm O/D
× 8mm I/D. Outer
sleeve 15mm long, inner core 17mm long.
New Cyclemaster engine mounting rubbers, 4 × bush kit—£12.
Sachs metalastic engine mounting bushes:
Short type—£5 each
8.5mm I/D
× 19mm O/D × 15mm
long. (Typically cylinder head mountings, + 2-speed and
automatic engines.)
Long type—SOLD OUT.
8.5mm I/D
× 19mm O/D × 19mm
long. (Typically crankcase mountings, + 3-speed and 4-speed
engines.)
Fork gaiters, 1⅛" I/D top × ⅞" I/D bottom × 6½" long, BSA Bantam type—£10 pair.
Amber reflector, stainless steel bezel, rubber mount. 3/16" tap screw fixing, but assembly is dismantleable and screw can easily be replaced with 5mm or 2BA screw—£7 each.
Red reflector with chrome bezel, 5mm stud mounting—£7 each.
Mopedland > Spares > Chainmail
