Hercules | Rex/Phillips

Piston sets - single-speed.

40.75mm. 1st O/S - 1 × Bretille (£30 each)

41mm. 2nd O/S - 1 × Bretille (£30 each)

41.5mm. 4th O/S - 2 × Asso 1017 (£30 each)

Piston sets - 2-speed/3-speed.

40.25mm. 1st O/S - 5 × Mahle (£20 each)

40.25mm. 1st O/S - 1 × Vertex (£20 each)

40.25mm. 1st O/S - 1 × Kolbenschmidt (£20 each)

40.75mm. 3rd O/S - 1 × Kolbenschmidt (£20 each)

41mm. 4th O/S - 3 × Kolbenschmidt (£20 each)

41.25mm. 5th O/S - 1 × Kolbenschmidt (£20 each)

41.25mm. 5th O/S - 5 × Vertex (£20 each)

41.5mm. max O/S - 1 × Vertex (£20 each)

41.5mm. max O/S - 3 × Kolbenschmidt (£20 each)

Cylinders - single-speed

40.5mm - 2 × Std, used. Sand blasted (£20).

Cylinders - 2-speed/3-speed

40.5mm - 2nd oversize, freshly bored c/w with piston set (£50) EXCHANGE.

Piston Rings - single-speed

40.5mm × 2.5mm hemi-peg (C) std - 6 pairs × Hepolite ref 7160 (£8 pair)

40.5mm × 2.5mm hemi-peg (C) std - 6 singles × Goetze (£8 pair)

Piston Rings - 2-speed/3-speed

40mm × 2.5mm hemi-peg (C) std - 3 pairs × Hepolite ref 9690 (£8 pair)

40mm × 2.5mm hemi-peg (C) std - 6 singles × Goetze (£8 pair)

40mm × 2.5mm hemi-peg (C) std - 7 singles × Remax/Romax (£8 pair)

40.25mm × 2.5mm hemi-peg (C) (1st oversize) - Goetze (£8 pair)

Engine Parts

1 × V42 Helical gear with clutch shaft (used) - (£4 each)

Decompressor Parts - single-speed/2-speed/3-speed

2 × V52 decompressor valve single-speed (2" long) - (£2 ea)

2 × 2139/V3155 decompressor valve 2-speed/3-speed re-machined - (£5 each)

2 × V3635 Decompressor lever (handlebar) (2-speed/3-speed) - (£4 each)

2 × V55/2142/V3157 Decompressor valve spring - (£1 each)

6 × Decompressor Cable Cup re-machined - (£1.50p each).

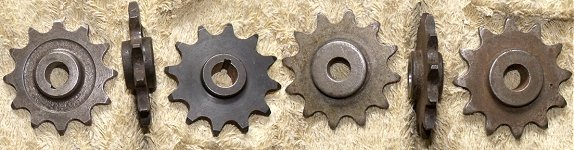

Front Sprockets - 2-speed

Rex 2-speed (RAP, Phillips P39).  Taper 10.8mm - 12mm, Total width 13.8mm.
1 × 11T - B240(K) (early version with keyway) - £8 each.
18 × 12T - V.79(K) (early version with keyway) - £8 each.
15 ×12T - V.79 (later version plain bire) - £8 each.
5 × 13T - V.142 (plain bire) - £10 each.

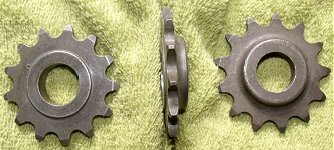

Front Sprockets - 3-speed

Rex 3-speed (RAP, Phillips P50).  Plain taper 18.9mm - 20mm, Total width 11mm.
8 × 12T - V.80 - £8 each.
5 × 13T - V.95 - £9 each.
1 × 14T - V.172 - £15 each.

Mag Sets - 1-speed/2-speed/3-speed

1 × Miller V115 High tension Coil with fixing screws (new) - (£20)

1 × Miller V117 condenser with fixing screw set (£8)

Gasket Sets (full engine)

30 × 2-speed - (£5 each)

0 × 3-speed - (Sold Out)

Gasket Sets (part engine)

1 × 2-speed complete engine excluding exhaust manifold gasket - (£3.50ea)

Gaskets (individuals) - 2-speed/3-speed

12 × Cylinder head - (£1.50p each)

2 × Cylinder base - (50p each)

Gasket Sets (full engine)

2 × Single-speed (Panda Mk1/Mk2) - (£10 ea)

Gasket Sets (individuals) - single-speed

5 × V60 single-speed cylinder head - (£1.50p each)

9 × V26 (BS29) Cylinder base (rubber O-ring) - (50p each)

1 × V27 Main crankcase gasket - (50p each)

2 × V17 Drive case gasket - (50p each)

4 × V66 Exhaust gasket - (£1.50p each)

Exhaust - Panda/single-speed

1 × V409 Exhaust Bracket - £3.

Clutch Plates - 2-speed/3-speed

2 × Single, 73mm flat tags - Surflex (£8 each)

9 × Boxed pair, 73mm formed tags - Adige (£16 pair)

1 × Boxed pair, 75mm flat tags - Adige (£16 pair) *Rex 49 Model 504 2-speed

2 × Single, 75mm formed tags - Adige (£8 each)

(75mm clutch discs appear to be for 4-speed engine)

Clutch Kits - single-speed (Panda Mk1/Mk2)

3 × packed kits (2 × steel, 4 × thin SRBF, 1 × thick SRBF plates) - 7 plate set (£24 each)

Clutch Parts - single-speed (Panda Mk1/Mk2)

2 × V146 Clutch case & 12T sprocket - (£15 each)

2 × V146 Clutch case & 12T sprocket good/used - (£10 each)

2 × V146 Clutch case & 12T sprocket used - (£5 each)

5 × V147 Clutch cap Used - (£2.50 each)

5 × V148 Driving sleeve (clutch centre) New - (£5 each)

4 × V148 Driving sleeve (clutch centre) good/used - (£3 each)

1 × V148 Driving sleeve (clutch centre) poor/used - (£1 each)

3 × V149 Clutch securing nut - (£2 each)

2 × Locking Screw (for clutch securing nut) - (£1 each)

11 × V150 Driven clutch plate poor/used (steel) - (£1 each)

4 × V151 Fibre clutch ring - (£2 each)

4 × V153 Clutch Pressure Plate Used - (£2.50 each)

1 × V154 Clutch spring (6) set - (£5 set)

2 × V155 Clutch spring pressure cup (6) set new - (£5 set)

4 × V155 Clutch spring pressure cup (6) used - (£3 set)

10 × V156 Clutch carrier plate New - (£2 each)

5 × V156 Clutch carrier plate Used - (£1 each)

1 × V157 Spring Ring - (£2 each)

6 × V158 Clutch centre stud - (£2 each)

2 × V159 Roller bearing (clutch centre) - (£5 each)

2 × V160 Distance Washer (clutch centre) - (£1 each)

1 × V162 Clutch small circlip - (50p each)

3 × V164 Tension Spring (for clutch dome) - (£2 each)

2 × V167 Clutch Bracket Used - (£5 each)

2 × V168 Clutch retaining pin - (£3 each) (remade, stainless steel).

1 × V168 Clutch retaining pin Used - (£2 each)

Gearbox

1 × 2095 2-speed Gear Wheel 1.  New - (£8 each)

1 × 2097 2-speed Gear Dog Selector.  New - (£8 each)

Engine seals - 2-speed (to order)

Pedal shaft (2 per) - R16 × 22 × 4A1N (£4 each)

Main seal (1 per) - R17 × 35 × 7A1N (£4.50p each)

Main seal (1per) - R15 × 24 × 7A1N (£4 each)

Selector shaft (1 per) - R10 × 16 × 4A1N (£4 each)

Output shaft (1 per) - R12 × 22 × 7A1N (£4 each)

Engine Seals - single-speed (Panda Mk1/Mk2) (to order)

Main seal (1 per) - R15 × 24 × 7A1N (£4 each)

Output shaft seal (1 per) - R15 × 24 × 7A1N (£4 each)

Bearings - single-speed (Panda Mk1/Mk2) (to order)

Centre main bearing 20 × 42 × 6 - 16004.

Drive side main bearing 15 × 32 × 8 - 16002.

Mag side main bearing 15 × 32 × 8 - 16002.

Output shaft mag side bearing 15 × 32 × 8 - 16002.

Drive side output shaft bearing 15 × 32 × 9 - 6002.

Bearings - 2-speed/3-speed (to order)

Main bearings (2 per) - 6202 (£5 ea)

Gearbox 1st (RHS) & 2nd (LHS) shaft bearings (2 per) - 6201 (£5 each) 2

Gearbox 2nd (LHS) & 1st (RHS) shaft bearings (2 per) - 6001 (£5 each)

Engine Mounting Sets

1 × Panda Mk2 Front Engine Mounting Set (2 parts) Used - £4.

1 × Panda Mk1/2 Rear Engine mounting Set V228/V229 (2 parts) Used - £6.

Cables - single-speed (Panda Mk1/Mk2)

5 × V624 Phillips Panda Rex decompressor cable (long) - (£5 each)

4 × V622 Phillips Panda Rex clutch cable - (£5 each)

3 × V621 Phillips Rex throttle cable - (£5 each)

8 × V623 Phillips Panda/Hercules Corvette front brake cable 32" (Amal lever/B.H.Co. brake) - (£5 each)

2 × Panda Mk1/Mk2 Front brake cable adjuster - (£2 each)

3 × Gadabout P39/P45/P50 Front brake cable adjuster - (£2 each)

Cables - 2-speed/3-speed (Gadabout P39/P50)

5 × P39/P50 Magura Rex 2-sp gear cable - (£5 each)

5 × V7233 Phillips Gadabout P39/P50 Rex decompressor cable (short) - (£5 each)

10 × Phillips Gadabout P39/P50 Magura Rex clutch cable - (£5 each)

2 × Phillips P39/P50 Magura Rex throttle cable - (£5 each)

Controls

2 × P39/2sp Hand Change (Magura) with black grip - (£6 each)

6 × V610 Panda/1-speed Front Brake Lever (Amal) - (£10 each)

5 × V616 Panda/1-speed Clutch lever (Amal) - (£15 each)

Fork Bushes - 2-speed/3-speed (Gadabout P39/P45/P50)

4 × V3364 Top front fork bushes (Cast, hexagonal broached) - (£10 each)

Bearing Cups - 2-speed/3-speed (Gadabout P39/P50)

2 × Bearing cups suited to B.H.Co. full width hub - (£5 each)

Carburettor - 12mm Bing 1/12/27 (Panda Mk1/Mk2)

Main jet 60, Needle jet 2.12, Needle 2 (position 4, highest), Air slide 8B (New - £60)

Carburettor Parts (Bing) - single-speed (Panda Mk1/Mk2)

1 × V69 Carburettor union (inlet manifold) - (£4 each)

4 × V73 Float chamber lip gasket - (£1 each)

2 × V78 Cover (carb top) - (£1 each)

1 × V84 Choke plunger - (£2 each)

2 × V85 Petrol feed nipple - (£2 each)

1 × V87 Throttle spring - (£3 each)

1 × V88 Choke shutter - (£1 each)

1 × V90 Filter spring clip - (£4 each)

1 × V93 Float hinge plate - (£3 each)

1 × V96 Float chamber - (£3 each)

2 × V99 Carburettor insulating bush - (£3 each)

10 × V89 Air filter 50mm - (£9 each)

1 × Air intake rubber P39/2sp (Pallas carb) - (£10)

2 × 2187. Carburettor Union (inlet manifold) - (£4 each)

Other

1 × Excelite Headlamp Glass for Phillips Panda and Gadabout - £8

Note -

The specified spark plug for the Phillips Panda was a KLG F20.  This converts to Champion B4H.

Hercules | Rex/Phillips

Bearings & Seals

19806 Oil Seal - Crankshaft 30×15×10.  £5 each

17572 Ball Bearing - Crankshaft 35×15×11 6202.  £7 each

Corvette/Lavalette Main Bearing 42×15×13 6302.  £8

Corvette/Lavalette Crank Seal 24×15×7.  £5

Piston Rings

20791 Piston Rings 42×2mm B-slot Hepolite.  £25 pair

20791 Piston Rings 42×2mm A-slot (grind to B).  £20 pair

Corvette/Lavalette Piston Rings 40×2.5mm C-slot.  £8 pair

Gaskets

G-5-15. Gearbox Bevel Case Joint Gasket.  £1

G-5-14. Gearbox Joint Gasket.  £1

G-5-13. Gearbox Inspection Plate Cover Gasket.  £1

24/20792 Cylinder Base Gasket.  £1

MCS756 Complete engine & gearbox gasket set, Payen (cyl head gasket NOT included).  £5

Clutch & Gearbox

31-5-2. Gearbox Mainshaft Circlip.  50p

12-8-46. Gearbox Crownwheel Locking Washer.  £2

12-5-10. Drive Sprocket Lock Washer.  £2

31-8-4 Circlip, Clutch Centre.  £2

31-8-5 Circlip, Clutch Assembly.  £2

36-11-6. Clutch Spring.  £3

G-37-12 Clutch Centre (c/w 2xfitted bush 19-5-3).  £25

G-39-6 Plain Plate, thick.  £10

G-39-7 Plain Plate, thin.  £10

G-40-17. Clutch Plate (Bonded).  £15

G-40-16. Clutch Plate (Fabric) Ferodo VM41.  £20.

G-42-4 Clutch Spring Cup.  £3

37-1-1 Clutch Rod.  £1

Gudgeon Pin

27/20789. Gudgeon Pin (lightly pitted).  £2

28/20790. Gudgeon Pin Circlips.  50p

Carburetter parts

308/019/21. Carburetter Float & Needle Combined (bruised) £4

308-038 Throttle Spring.  £3

308/044 Jet Needle Clip.  £3

360/022 Carburetter Float Chamber Gasket.  £1

Tank Rubbers

ME-80. (4 set).  £5 set

Ignition

Miller capacitor for ignition system (new).  £8

Lavalette VM/BB Mag Flywheel Extractor.  £12.

Brakes

Front Brake Lining Kit with rivets, Nu-Texa.  £8

Exhausts

Her-Cu-Motor Exhaust Pipe (stainless steel).  £40

Transfers
